14-position, 2-row, 2mm pitch shrouded header with male pin contacts. Features gold-plated bronze and copper contacts for mating, a right-angle, through-hole mounting orientation, and a solder termination. Rated for 3A current and 120V voltage, with a maximum operating temperature of 125°C. Insulation is black glass with a UL94 V-0 flammability rating.
Voltage Rating120V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M80-5301442 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Bronze, Copper |
| Contact Plating | Gold |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Glass |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 11 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Datamate J-Tek |
| Termination | Solder |
| Voltage Rating | 120V |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M80-5301442 Datasheet
Download the complete datasheet for Harwin M80-5301442 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

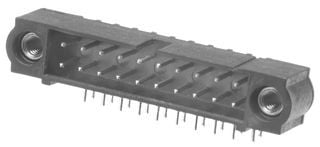

Product Images
