14-position, 2-row shrouded header with 2mm pitch for board-to-board applications. Features male pin contacts with gold plating over bronze for superior conductivity. Rated for 3A current and 120V DC, with a maximum operating temperature of 125°C. Surface mount termination with right-angle orientation, housed in black glass-filled nylon with UL94 V-0 flammability rating. Mated stacking height of 14.25mm.
Voltage Rating120V
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Harwin M80-8281442 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Bronze, Gold |
| Contact Plating | Gold |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Glass |
| Mated Stacking Heights | 14.25mm |
| Material | Nylon |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 14 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M80 |
| Termination | Solder |
| Voltage Rating | 120V |
| DC Rated Voltage | 120V |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M80-8281442 Datasheet
Download the complete datasheet for Harwin M80-8281442 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

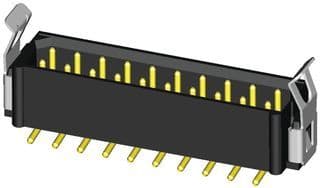

Product Images
