14-position, 2-row shrouded header with 2mm pitch, designed for right-angle, through-hole mounting. Features gold-plated bronze male pin contacts for reliable connectivity. Rated for 3A current and 120V voltage, with a maximum operating temperature of 125°C. Insulation is black nylon with a UL94 V-0 flammability rating. Supplied in a tube for efficient assembly.
Voltage Rating120V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M80-8511442 technical specifications.
General
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Bronze, Gold
Contact Plating
Gold
Contact Shape
Circular
Contact Type
Male Pin
Current Rating
3A
Flammability Rating
UL94 V-0
Gender
Male
Insulation Color
Black
Insulation Material
Nylon
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
14
Number of Positions
14
Number of Rows
2
Orientation
Right Angle
Package Quantity
14
Packaging
Rail/Tube
Pitch
2mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
M80
Termination
Solder
Voltage Rating
120V
Compliance
RoHS
Compliant
Datasheet
Harwin M80-8511442 Datasheet
Download the complete datasheet for Harwin M80-8511442 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

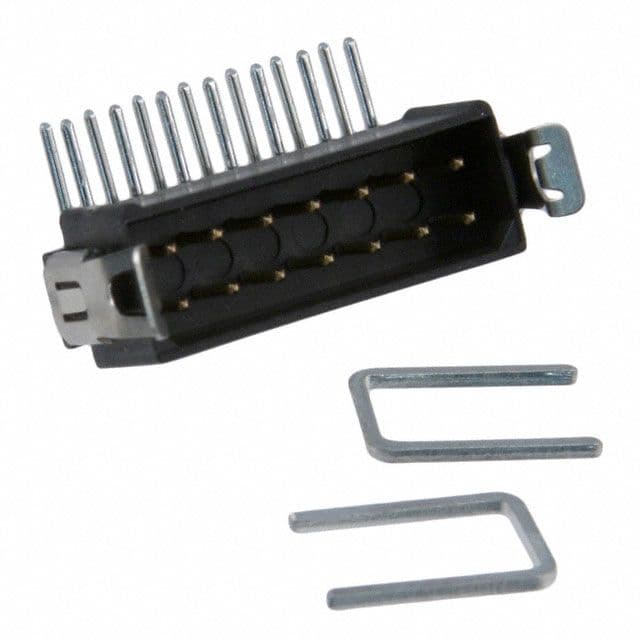

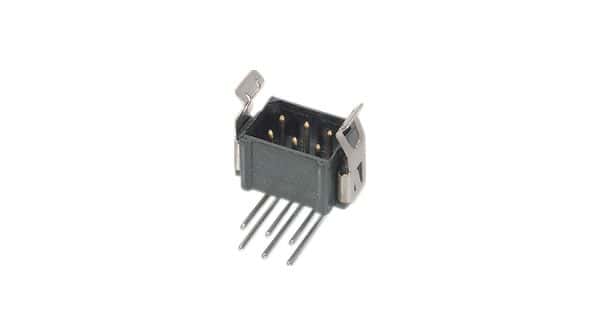

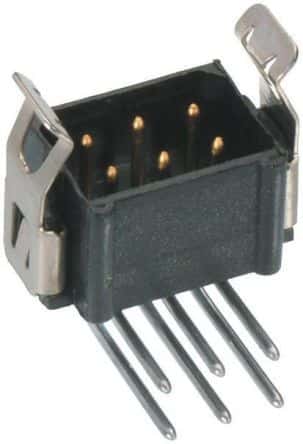

Product Images
