16-position, 2-row shrouded header with straight, through-hole mounting and 2mm pitch. Features male pin contacts made of bronze with gold plating for mating, offering a 3A current rating and 120V voltage rating. Operates within a -55°C to 125°C temperature range, with a UL94 V-0 flammability rating. The black nylon housing ensures durability.
Voltage Rating120V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M80-8531642 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Depth | 5.8mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Length | 19.6mm |
| Mated Stacking Heights | 13.51mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 120V |
| Mount | Through Hole |
| Number of Contacts | 16 |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 13 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M80 |
| Termination | Solder |
| Voltage Rating | 120V |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M80-8531642 Datasheet
Download the complete datasheet for Harwin M80-8531642 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

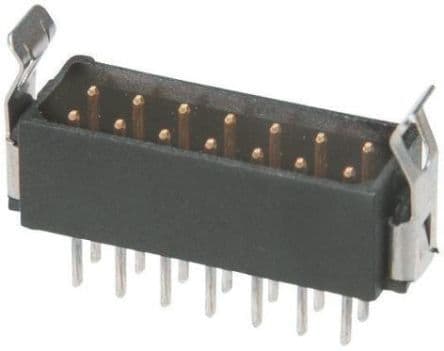

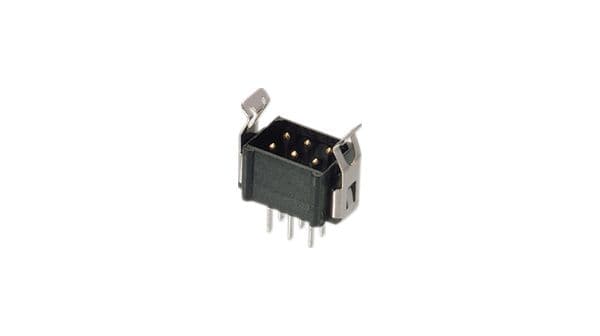

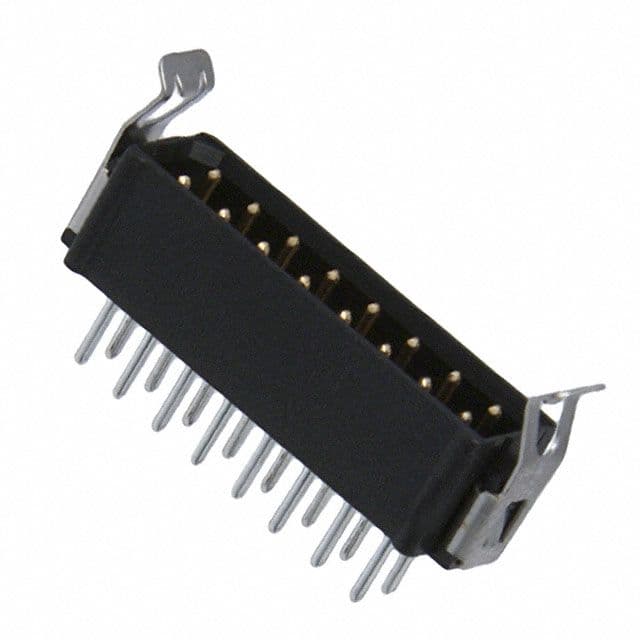

Product Images
