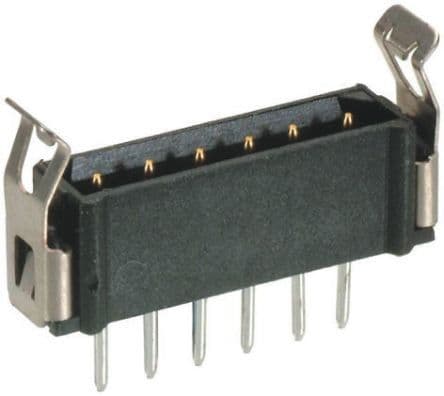

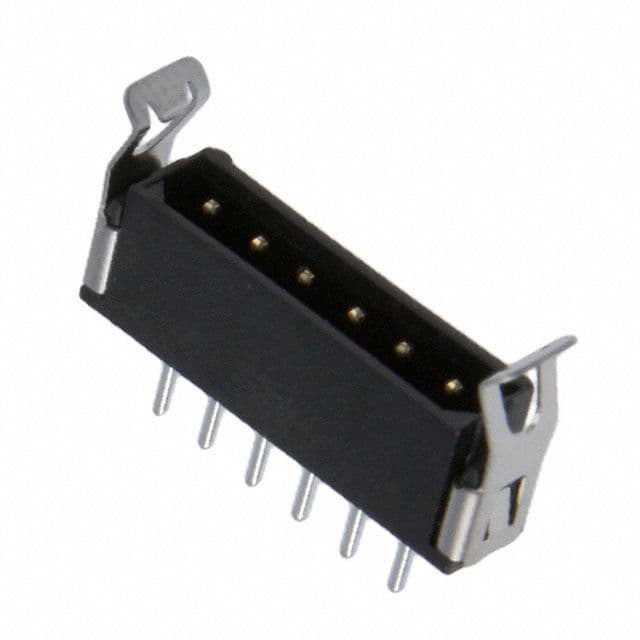

6-position, 1-row male pin header with 2mm pitch for board-to-board applications. Features straight, through-hole mounting with solder termination and a SIL package. Offers a 3A current rating, 800V voltage rating, and a -55°C to 125°C operating temperature range. Contacts are made of bronze with tin and gold plating, and the insulation is black nylon with a UL94 V-0 flammability rating.
PackageSIL
Voltage Rating800V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M80-8820642 technical specifications.
General
| Package/Case | SIL |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Tin, Gold |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Mated Stacking Heights | 13.46mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 16 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Datamate L-Tek |
| Termination | Solder |
| Voltage Rating | 800V |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M80-8820642 Datasheet
Download the complete datasheet for Harwin M80-8820642 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
