8-position, 2-row, 2mm pitch shrouded header receptacle for board-to-board and mezzanine applications. Features female socket contacts made from copper, bronze, and brass with gold plating, rated for 3A current and 120V voltage. Designed for free-hanging, top-entry cable mounting with crimp termination for discrete wire gauges 28AWG to 24AWG. Black color, UL94 V-0 flammability rating, and RoHS compliant.
Voltage Rating120V
Current Rating3A
MountingFree Hanging
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Harwin M80-8880805 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Harwin M80-8880805 technical specifications.
General
| Color | Black |
| Contact Gender | Female |
| Contact Material | Copper, Bronze, Brass |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Mount | Free Hanging |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Datamate L-Tek |
| Termination | Crimp |
| Voltage Rating | 120V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 28AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M80-8880805 Datasheet
Download the complete datasheet for Harwin M80-8880805 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

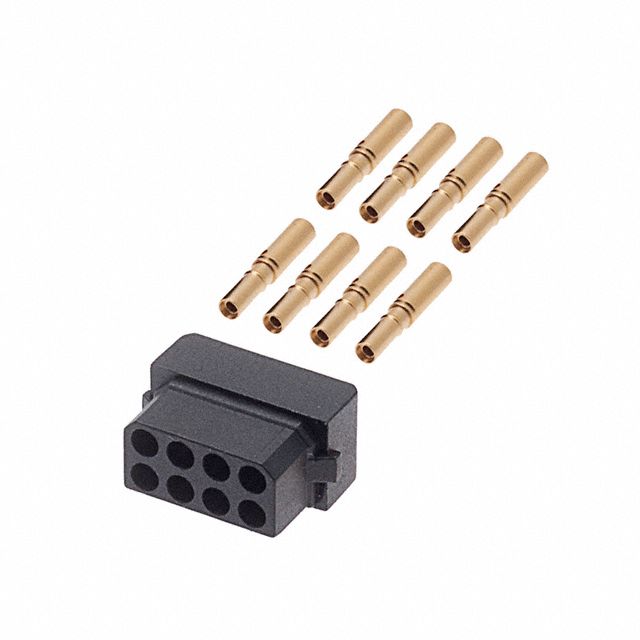

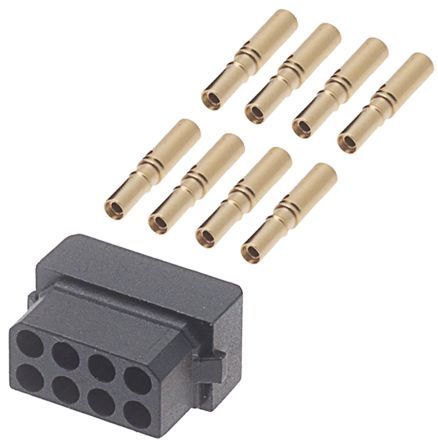

Product Images
