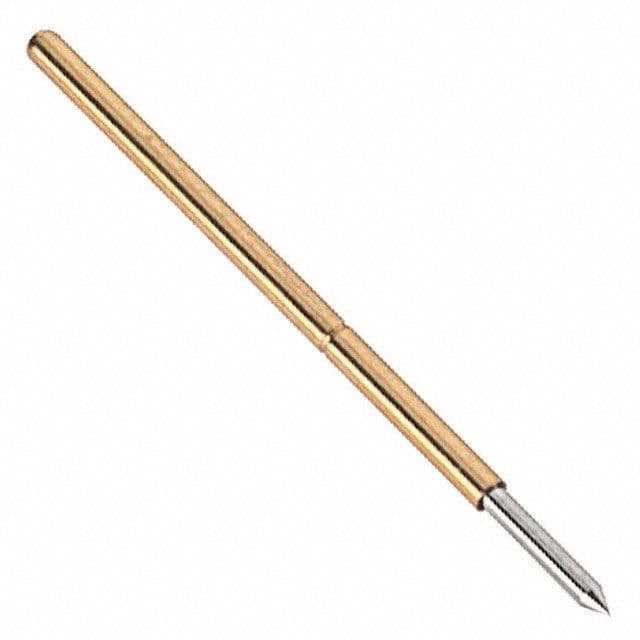

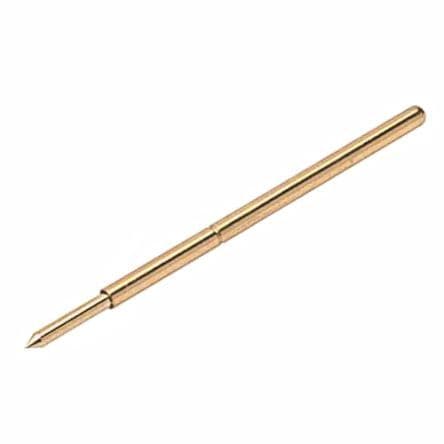

Spring probe connector contact featuring a 1.27 mm pitch and 45° spear tip. Rated for 3A current, this male connector contact offers a low resistance of 30mR. Constructed with a bronze body and gold plating, it utilizes copper contacts with rhodium plating for enhanced durability. Operating within a temperature range of -40°C to 185°C, it supports up to 1,000,000 mating cycles.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Harwin P13-0123 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Bronze |
| Body Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Rhodium |
| Current Rating | 3A |
| Gender | Male |
| Length | 16.35mm |
| Material | Bronze |
| Mating Cycles | 1000000 |
| Max Operating Temperature | 185°C |
| Min Operating Temperature | -40°C |
| Package Quantity | 500 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 30mR |
| RoHS Compliant | Yes |
| Series | P13-xx23 |
| RoHS | Compliant |
