Right-angle shield clip for SMT mounting, constructed from durable stainless steel with tin plating. Features a compact design with dimensions of 0.185 inches in length, 0.055 inches in width, and 0.031 inches in thickness. Operates reliably within a temperature range of -25°C to 150°C. Supplied in tape and reel packaging for efficient automated assembly, with 6000 units per package.
PackageSMD/SMT
MountingSolder
Quick Jump:
Technical Specifications
Harwin S0981-46R technical specifications.
General
| Package/Case | SMD/SMT |
| Length | 0.185inch |
| Material | Stainless Steel |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -25°C |
| Mount | Solder |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Reach SVHC Compliant | No |
| Thickness | 0.031inch |
| Width | 0.055inch |
Compliance
| RoHS | Compliant |
Datasheet
Harwin S0981-46R Datasheet
Download the complete datasheet for Harwin S0981-46R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

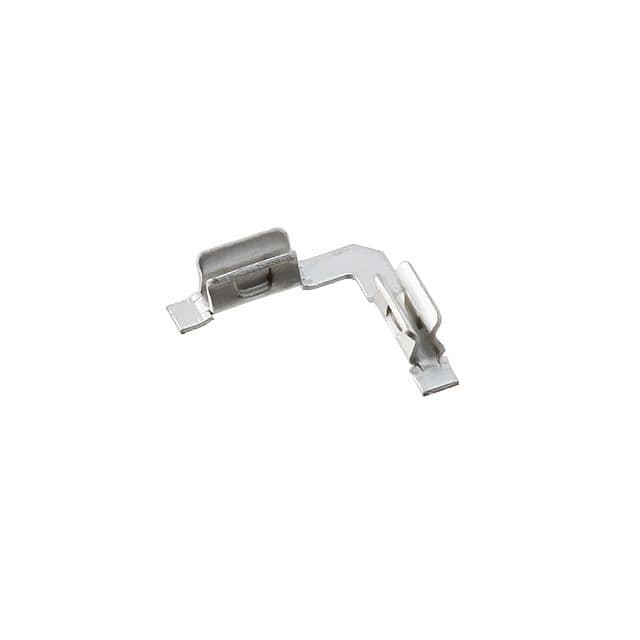

Product Images
