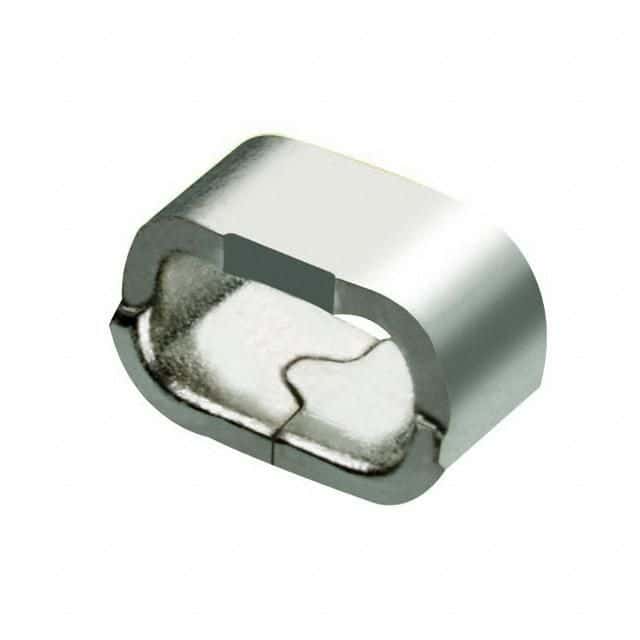

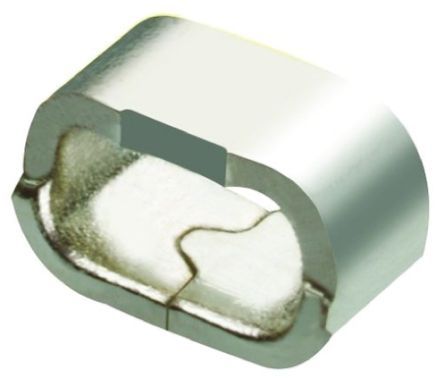

Surface mount interconnection device featuring a brass body and copper alloy contacts with tin plating. This single-contact, single-port component offers a straight orientation and solder termination. Measuring 3.25mm in length, 1.65mm in width, and 2mm in height and depth, it is supplied in tape and reel packaging with a quantity of 2500 units. The device is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Harwin S1751-46R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Color | Natural |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Tin |
| Depth | 2mm |
| Height | 2mm |
| Length | 3.25mm |
| Material | Brass |
| Mount | Surface Mount |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | S1751, EZ BoardWare |
| Termination | Solder |
| Width | 1.65mm |
| RoHS | Compliant |
Download the complete datasheet for Harwin S1751-46R to view detailed technical specifications.
