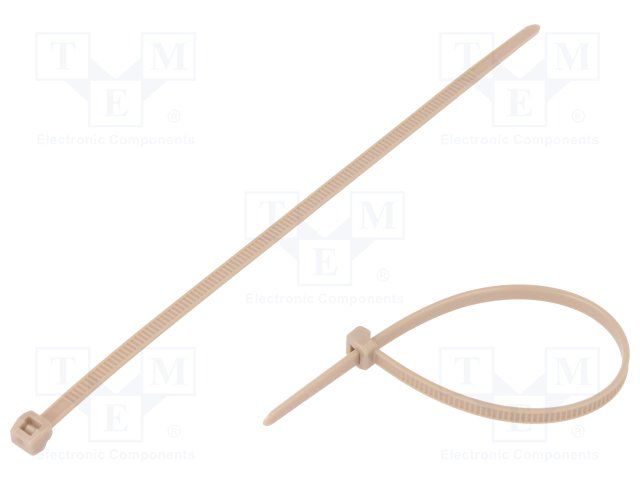

High-temperature, halogen-free cable ties constructed from Polyetheretherketone and Polyamide. These serrated ties offer a 230N tensile strength and a 3.4mm width, accommodating bundle diameters up to 35mm. Featuring a UL94 V-0 flammability rating and a wide operating temperature range from -55°C to 260°C, they are suitable for demanding automotive applications. Available in beige, grey, brown, black, and natural, each package contains 100 units.
Package100
MountingFree Hanging
Quick Jump:
Technical Specifications
Hellermanntyton 118-00032 technical specifications.
General
Bundle Diameter
35mm
Package/Case
100
Color
Beige, Grey, Brown, Black, Natural
Features
High Temperature
Flammability Rating
UL94 V-0
Halogen Free
Halogen Free
Length
145mm
Material
Polyetheretherketone, Polyamide
Max Operating Temperature
260°C
Min Operating Temperature
-55°C
Mount
Free Hanging
Package Quantity
100
Width
3.4mm
Compliance
RoHS
Compliant
Datasheet
Hellermanntyton 118-00032 Datasheet
Download the complete datasheet for Hellermanntyton 118-00032 to view detailed technical specifications.
