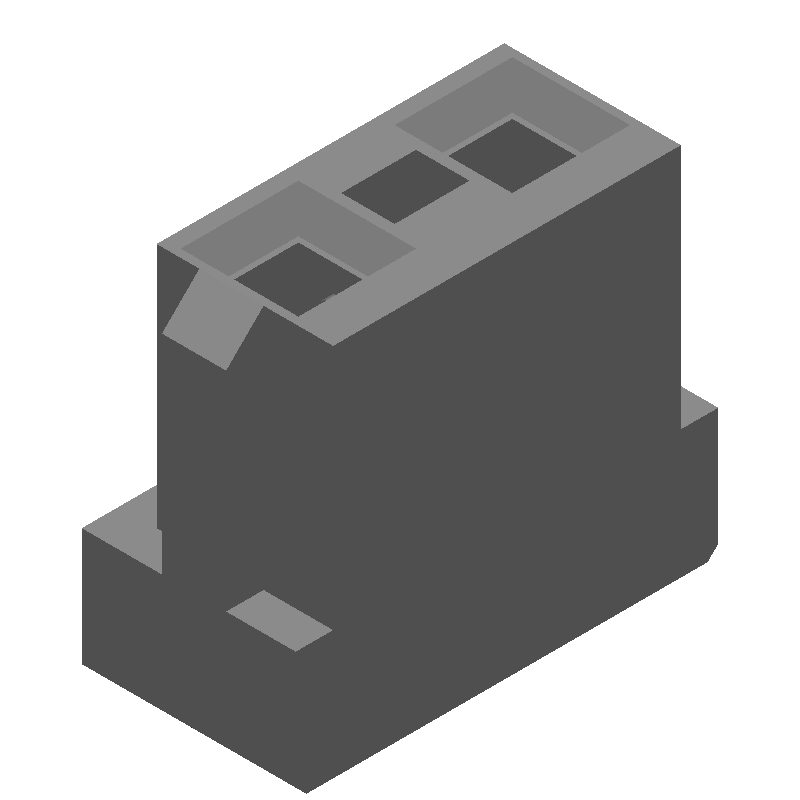

Female, straight, 2-position interconnection device with a 2mm pitch. Features gold-plated bronze contacts, a 1A current rating, and a 200V AC voltage rating. Operating temperature range from -55°C to 85°C. Housing is black, UL94 V-0 flammability rated, and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hirose A3-SP(A) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Hirose A3-SP(A) technical specifications.
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 2mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 0.138inch |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 3.95mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 200V |
| Number of Contacts | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2mm |
| RoHS Compliant | Yes |
| Series | A3 |
| Voltage Rating | 200V |
| Voltage Rating (AC) | 200V |
| Width | 3.5mm |
| RoHS | Compliant |
