Female wire terminal for signal applications, featuring tin-plated copper alloy contacts. Rated for 150V and 1A, this beige terminal accepts wire gauges from 30AWG to 26AWG with a crimp termination. Operating temperature range is -35°C to 85°C, with a contact resistance of 0.03 Ohms. Packaged in tape and reel, this RoHS compliant component has a height of 1.65mm and length of 3.7mm.
Resistance0.03R
Voltage Rating150V
Current Rating1A
Quick Jump:
Technical Specifications
Hirose DF13-2630SCF technical specifications.
General
| Color | Beige |
| Contact Gender | Female |
| Contact Material | Copper, Copper Alloy |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 1A |
| Gender | Female |
| Height | 1.65mm |
| Lead Free | Lead Free |
| Length | 3.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -35°C |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 0.03R |
| RoHS Compliant | Yes |
| Series | DF13 |
| Termination | Crimp |
| Voltage Rating | 150V |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 30AWG |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
Hirose DF13-2630SCF Datasheet
Download the complete datasheet for Hirose DF13-2630SCF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

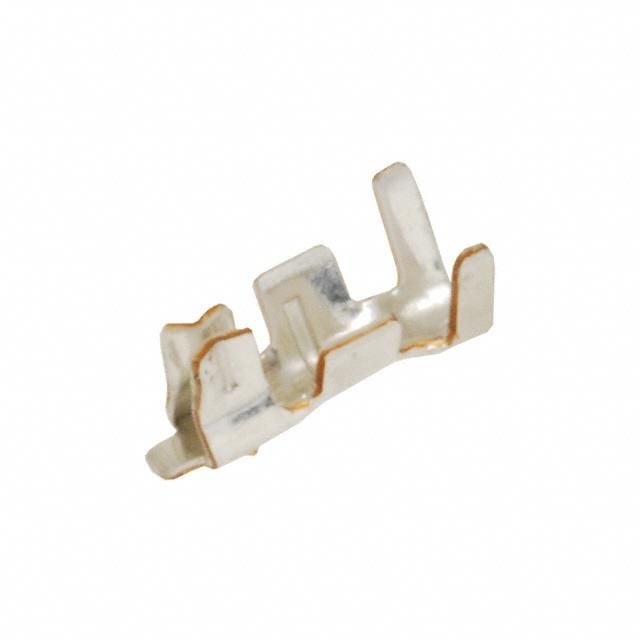

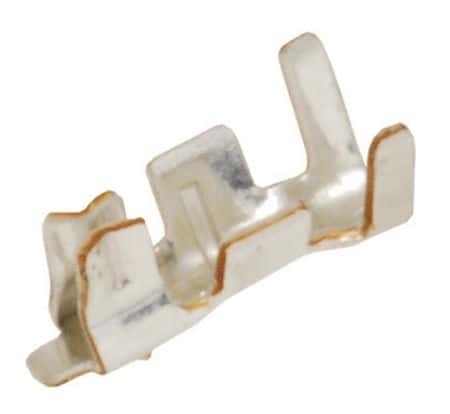

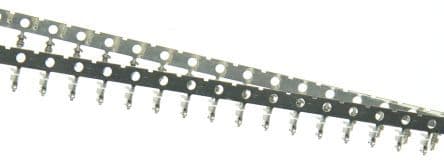

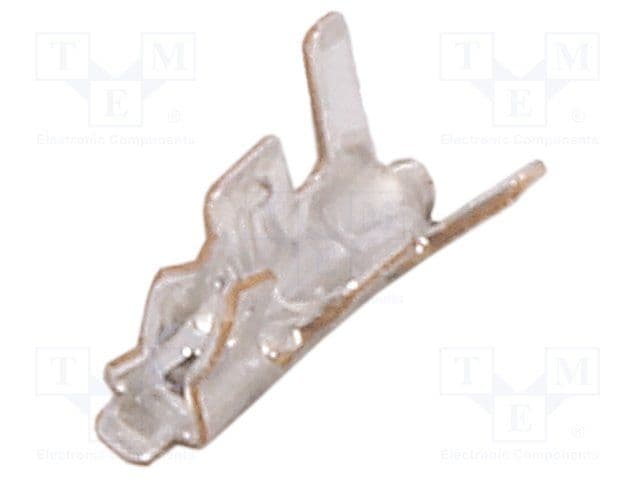

Product Images
