Shrouded header with 2 positions and 1 row, featuring a 1.25mm contact pitch. This straight, surface-mount connector offers a 1A current rating and 150V voltage rating. Constructed with brass contacts and tin plating, it utilizes a nylon housing in beige. The component is lead-free, RoHS compliant, and rated UL94 V-0 for flammability.
Voltage Rating150V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose DF13C-2P-1.25V(21) technical specifications.
General
Color
Beige
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Pitch
1.25mm
Contact Plating
Tin
Contact Shape
Square
Contact Type
Male Pin
Contact Voltage Rating (AC)
150V
Current Rating
1A
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Beige
Insulation Color
Beige
Insulation Material
Nylon
Lead Free
Lead Free
Mated Stacking Heights
5.8mm
Mount
Surface Mount
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
1000
Packaging
Tape and Reel
Pitch
1.25mm
RoHS Compliant
Yes
Series
DF13
Termination
Solder
Voltage Rating
150V
Compliance
RoHS
Compliant
Datasheet
Hirose DF13C-2P-1.25V(21) Datasheet
Download the complete datasheet for Hirose DF13C-2P-1.25V(21) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

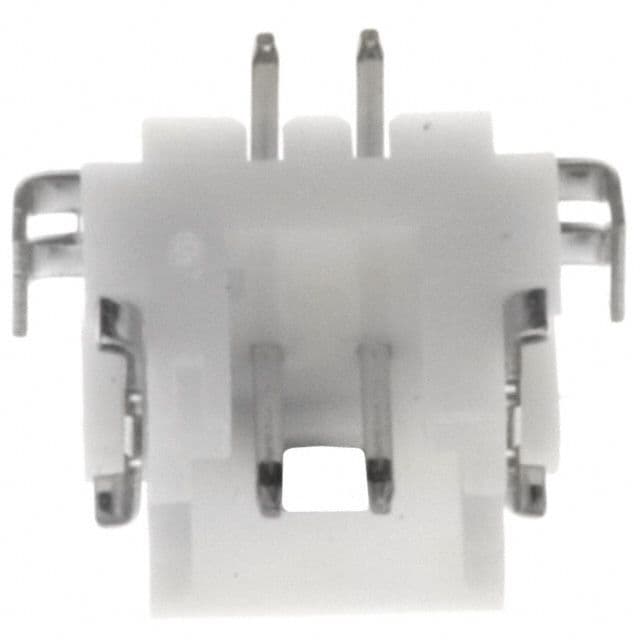

Product Images
