Shrouded header, 3 positions, 1.25mm pitch, surface mount connector. Features male pin contacts with gold mating finish, copper/brass contact material, and tin/gold plating. Rated for 1A current and 150V voltage, with a UL94 V-0 flammability rating. Nylon insulation in beige housing.
Voltage Rating150V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose DF13C-3P-1.25V(50) technical specifications.
General
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Copper, Brass
Contact Plating
Tin, Gold
Contact Shape
Square
Contact Type
Male Pin
Current Rating
1A
Flammability Rating
UL94 V-0
Gender
Male
Height
4.8mm
Housing Color
Beige
Insulation Color
Beige
Insulation Material
Nylon
Lead Free
Lead Free
Length
8.4mm
Mated Stacking Heights
5.8mm
Mount
Surface Mount
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Package Quantity
1
Pitch
1.25mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
DF13
Termination
Solder
Voltage Rating
150V
Compliance
RoHS
Compliant
Datasheet
Hirose DF13C-3P-1.25V(50) Datasheet
Download the complete datasheet for Hirose DF13C-3P-1.25V(50) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

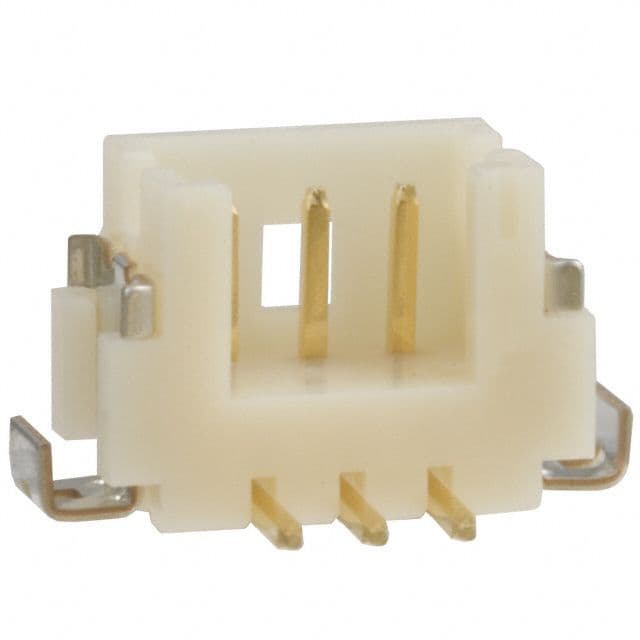

Product Images
