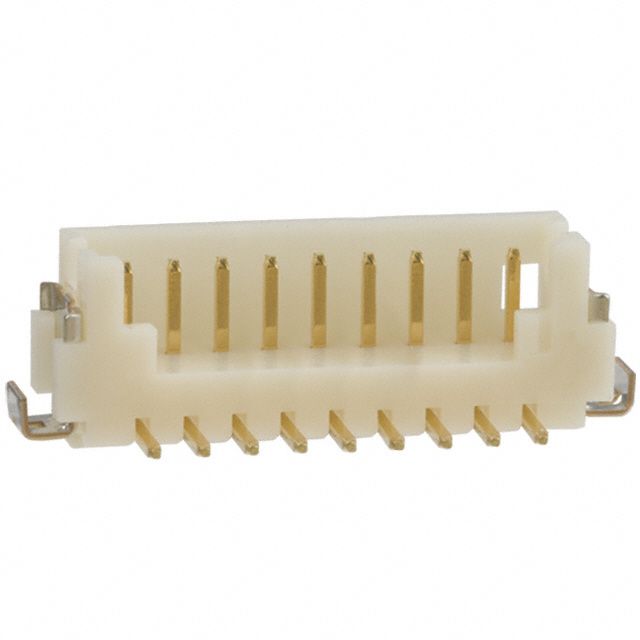

9-position shrouded header with a 1.25mm pitch, designed for straight, surface-mount termination. Features male pin contacts made from brass and copper alloy with gold plating, offering a 1A current rating and 150V voltage rating. Constructed with a beige nylon insulation material and rated UL94 V-0 for flammability. Operates within a temperature range of -35°C to 85°C and is supplied on tape and reel.
Voltage Rating150V
Current Rating1A
Quick Jump:
Technical Specifications
Hirose DF13C-9P-1.25V(51) technical specifications.
General
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass, Copper Alloy
Contact Plating
Gold
Contact Shape
Square
Contact Type
Male Pin
Current Rating
1A
Depth
3.4mm
Flammability Rating
UL94 V-0
Housing Color
Beige
Insulation Color
Beige
Insulation Material
Nylon
Lead Free
Lead Free
Length
15.9mm
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
150V
Number of Contacts
9
Number of Positions
9
Number of Rows
1
Orientation
Straight
Packaging
Tape and Reel
Pitch
1.25mm
RoHS Compliant
Yes
Series
DF13
Termination
Solder
Voltage Rating
150V
Compliance
RoHS
Compliant
