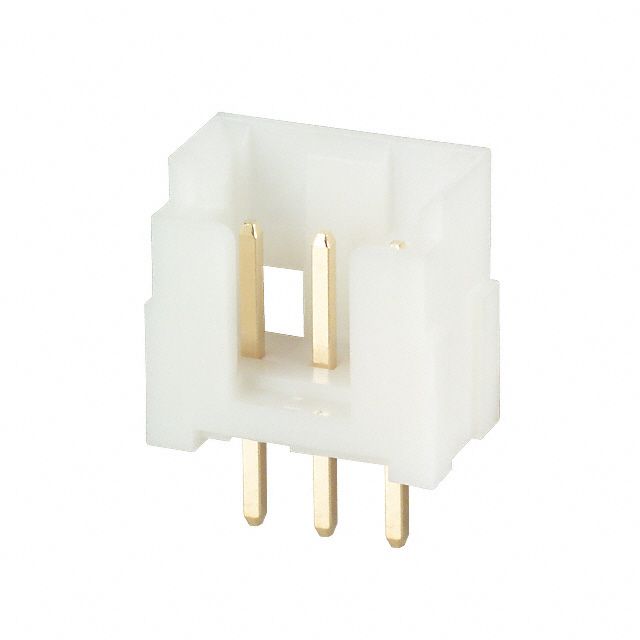

Shrouded header with 3 positions and a 2.5mm pitch. Features male pin contacts made of brass with gold plating, offering a 3A current rating and 250V voltage rating. Straight, through-hole mounting with solder termination. Operates within a temperature range of -35°C to 85°C.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Hirose DF1B-3P-2.5DSA(01) technical specifications.
General
Color
White
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.177inch
Contact Pitch
2.5mm
Contact Plating
Gold
Contact Type
Male Pin
Contact Voltage Rating (AC)
250V
Current Rating
3A
Depth
5.7mm
Gender
Male
Housing Color
White
Lead Free
Lead Free
Length
10mm
Max Current Rating
3A
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
2.5mm
RoHS Compliant
Yes
Series
DF1B
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Hirose DF1B-3P-2.5DSA(01) Datasheet
Download the complete datasheet for Hirose DF1B-3P-2.5DSA(01) to view detailed technical specifications.
