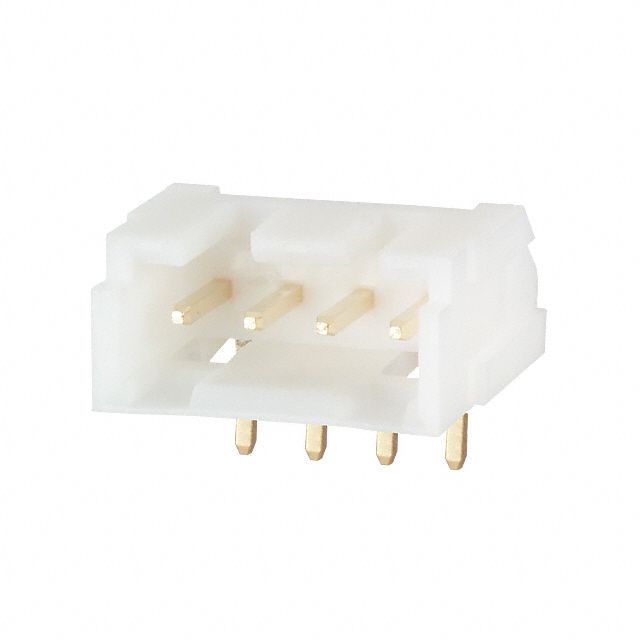

4-position, right-angle shrouded header with a 2.5mm pitch. Features male pin contacts made of brass with gold plating for superior conductivity. Rated for 3A current and 250V AC, with a maximum operating temperature of 85°C. The white nylon housing offers UL94 V-0 flammability resistance and through-hole mounting for secure termination.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Hirose DF1B-4P-2.5DS(01) technical specifications.
General
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
12.5mm
Flammability Rating
UL94 V-0
Gender
Male
Height
5.7mm
Housing Color
White
Insulation Color
White
Insulation Material
Nylon
Lead Free
Lead Free
Length
12.5mm
Max Current Rating
3A
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Positions
4
Number of Rows
1
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Pitch
2.5mm
RoHS Compliant
Yes
Series
DF1B
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
Hirose DF1B-4P-2.5DS(01) Datasheet
Download the complete datasheet for Hirose DF1B-4P-2.5DS(01) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
