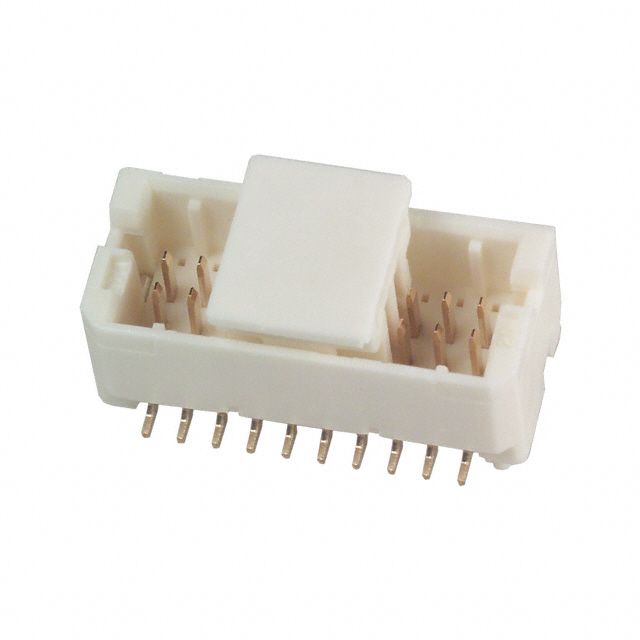

20-position, 2-row shrouded header with a 1mm pitch for board-to-board applications. Features male pin contacts made of gold-plated bronze, offering a 1A current rating and 100V voltage rating. This straight, surface-mount component has a beige housing and is supplied on tape and reel for automated assembly. Operating temperature range is -35°C to 85°C.
Voltage Rating100V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose DF20F-20DP-1V(56) technical specifications.
General
Color
Beige
Contact Gender
Male
Contact Material
Bronze
Contact Plating
Gold
Contact Type
Male Pin
Current Rating
1A
Depth
5.4mm
Gender
Male
Housing Color
Beige
Lead Free
Lead Free
Length
12.3mm
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
100V
Mount
Surface Mount
Number of Contacts
20
Number of Positions
20
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Tape and Reel
Pitch
1mm
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.039inch
Series
DF20
Termination
Solder
Voltage Rating
100V
Compliance
RoHS
Compliant
Datasheet
Hirose DF20F-20DP-1V(56) Datasheet
Download the complete datasheet for Hirose DF20F-20DP-1V(56) to view detailed technical specifications.
