10-position, 2-row shrouded header with a 1mm pitch for board-to-board applications. Features male pin contacts made of bronze with gold plating for reliable mating. Surface mountable with straight orientation, this component offers a maximum current rating of 1A and a voltage rating of 100V AC. Constructed with a beige nylon housing and natural insulation, it operates within a temperature range of -35°C to 85°C and meets UL94 V-0 flammability standards.
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose DF20G-10DP-1V(56) technical specifications.
General
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Male Pin
Depth
5.4mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Beige
Insulation Color
Natural
Insulation Material
Nylon
Lead Free
Lead Free
Length
7.3mm
Mated Stacking Heights
5.8mm
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Voltage Rating (AC)
100V
Mount
Surface Mount
Number of Contacts
10
Number of Positions
10
Number of Rows
2
Orientation
Straight
Packaging
Tape and Reel
Pitch
1mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DF20
Termination
Solder
Voltage Rating
100V
Compliance
RoHS
Compliant
Datasheet
Hirose DF20G-10DP-1V(56) Datasheet
Download the complete datasheet for Hirose DF20G-10DP-1V(56) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

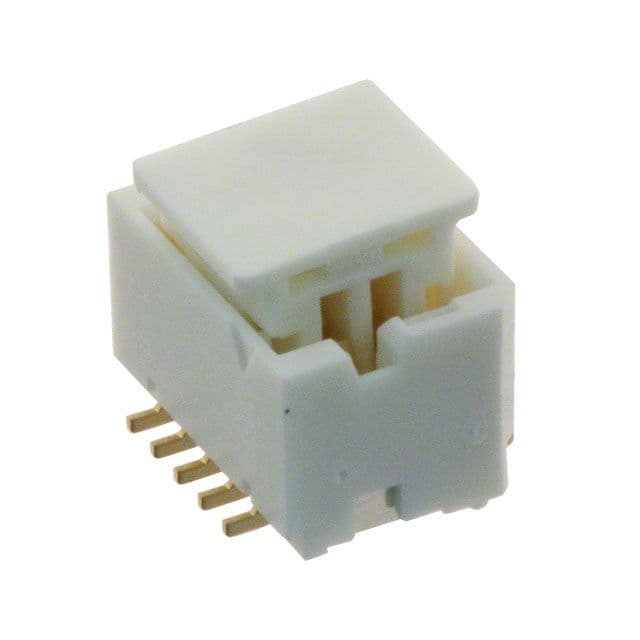

Product Images
