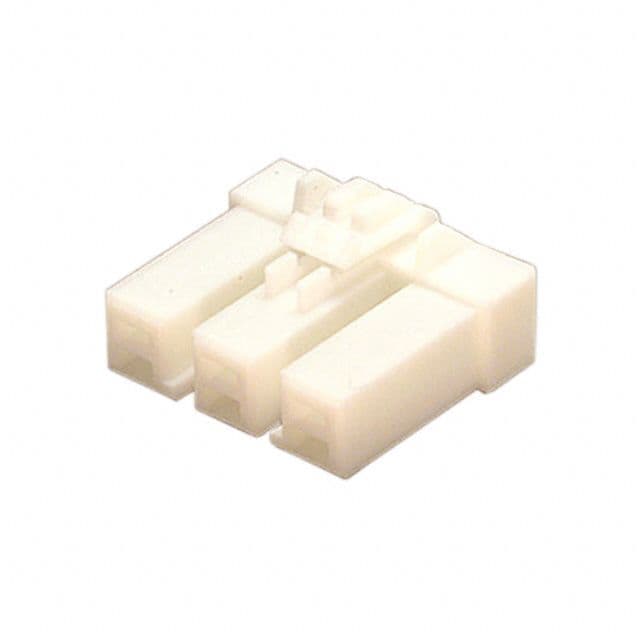

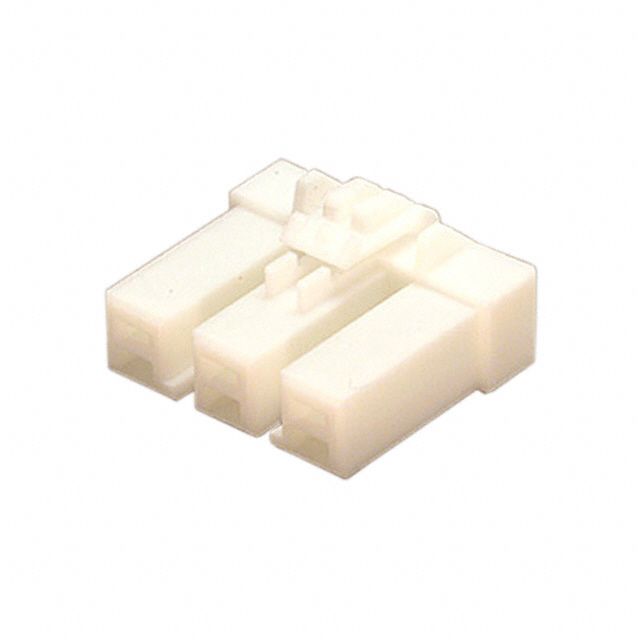

3-position, straight, cable mount wire housing for crimp termination. Features a 7.92mm pitch and a 20A current rating. Constructed with a white, lead-free housing and copper alloy contacts with copper and tin plating. Operates within a temperature range of -35°C to 85°C and supports a voltage rating of 600V AC. Designed for wire gauges from 10AWG to 16AWG.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hirose DF22-3S-7.92C(28) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Hirose DF22-3S-7.92C(28) technical specifications.
| Color | White |
| Contact Material | Copper Alloy |
| Contact Plating | Copper, Tin |
| Contact Type | Female Socket |
| Current Rating | 20A |
| Depth | 20mm |
| Gender | Female |
| Housing Color | White |
| Lead Free | Lead Free |
| Length | 23.42mm |
| Max Current Rating | 20A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -35°C |
| Max Voltage Rating (AC) | 1kV |
| Mount | Free Hanging, Cable |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 7.92mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | EnerBee™ DF22 |
| Termination | Crimp |
| Voltage Rating | 600V |
| Width | 11.55mm |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 10AWG |
| RoHS | Compliant |
