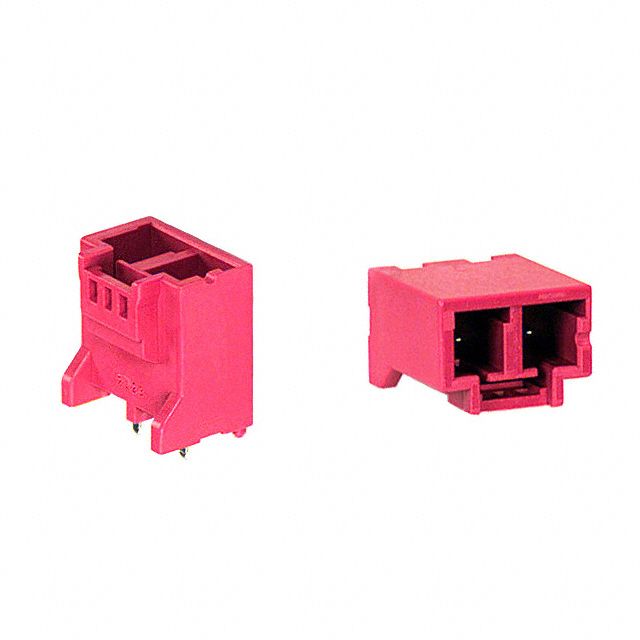

This 2-pin header features a current rating of 25A and a voltage rating of 600V. It is made with copper alloy contacts and has a contact plating of copper and tin. The header is through-hole mounted and has a red housing color. It is lead-free and RoHS compliant, packaged in bulk quantities of 100. The header has a pitch of 7.92mm and a contact mating length of 0.354inch.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hirose DF22L-2P-7.92DSA(05) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Hirose DF22L-2P-7.92DSA(05) technical specifications.
| Color | Red |
| Contact Material | Copper Alloy |
| Contact Mating Length | 0.354inch |
| Contact Plating | Copper, Tin |
| Contact Type | Male Pin |
| Current Rating | 25A |
| Gender | Male |
| Housing Color | Red |
| Lead Free | Lead Free |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 7.92mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | DF22 |
| Termination | Solder |
| Voltage Rating | 600V |
| RoHS | Compliant |
Download the complete datasheet for Hirose DF22L-2P-7.92DSA(05) to view detailed technical specifications.
