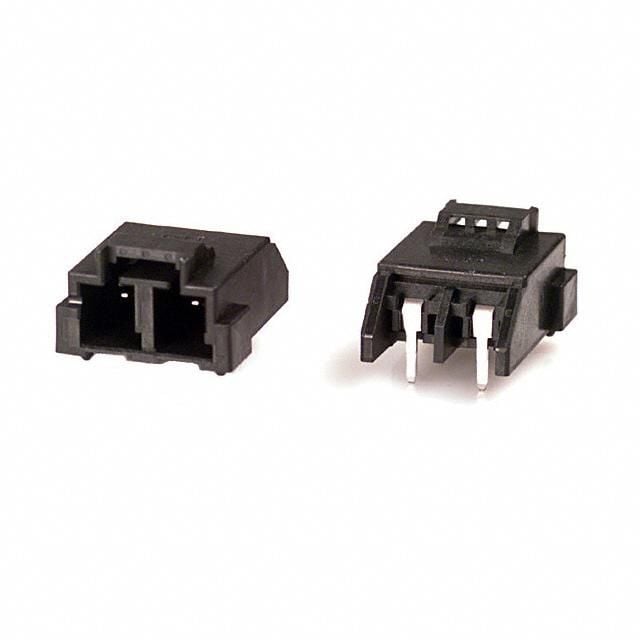

Shrouded header connector, 2 positions, 7.92mm pitch, right-angle, side entry, through-hole mounting. Features male pin contacts made of copper alloy with copper, tin, and lead plating, offering a 25A current rating and 600V voltage rating. Operates within a temperature range of -35°C to 85°C. Housing color is black.
Voltage Rating600V
Current Rating25A
MountingThrough Hole
Quick Jump:
Technical Specifications
Hirose DF22R-2P-7.92DS(05) technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Length | 0.354inch |
| Contact Plating | Copper, Tin, Lead |
| Contact Type | Male Pin |
| Current Rating | 25A |
| Depth | 12.2mm |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 19.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -35°C |
| Max Voltage Rating (AC) | 1kV |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 7.92mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | DF22 |
| Termination | Solder |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Hirose DF22R-2P-7.92DS(05) Datasheet
Download the complete datasheet for Hirose DF22R-2P-7.92DS(05) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
