3-position, 1-row straight shrouded header with a 7.92mm pitch. Features male pin contacts made of copper alloy with tin-lead plating, designed for solder termination. Rated for 1kV AC/DC, operating between -35°C and 85°C. Housing is black, and the component mounts via through-hole.
Voltage Rating1kV
MountingThrough Hole
Quick Jump:
Technical Specifications
Hirose DF22R-3P-7.92DSA(05) technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Length | 0.354inch |
| Contact Plating | Tin, Lead |
| Contact Type | Male Pin |
| Depth | 12.45mm |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 25.14mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -35°C |
| Max Voltage Rating (AC) | 1kV |
| Mount | Through Hole |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 7.92mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | DF22 |
| Termination | Solder |
| Voltage Rating | 1kV |
| DC Rated Voltage | 1kV |
Compliance
| RoHS | Compliant |
Datasheet
Hirose DF22R-3P-7.92DSA(05) Datasheet
Download the complete datasheet for Hirose DF22R-3P-7.92DSA(05) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

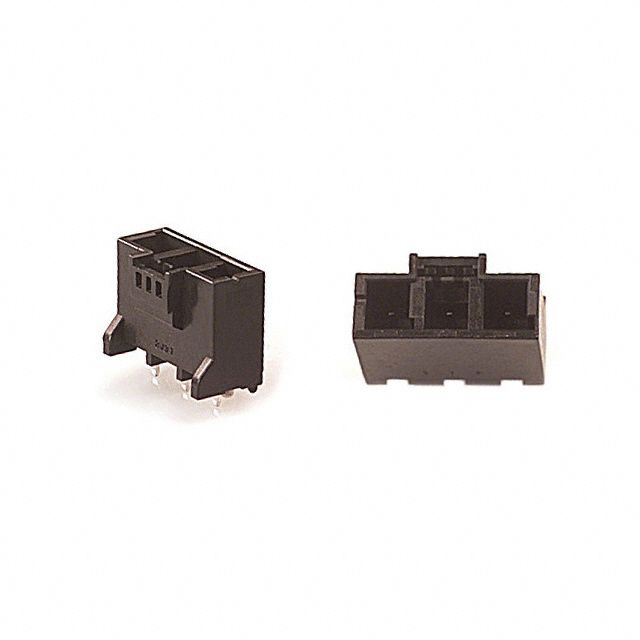

Product Images
