4-position, 1-row, 2mm pitch wire housing receptacle with straight orientation. Features female socket contacts, a 3A current rating, and a 250V voltage rating. Constructed from black nylon insulation, this component supports panel and free-hanging mounting. Designed for crimp termination, it accommodates wire gauges from 22AWG to 28AWG.
Voltage Rating250V
Current Rating3A
MountingFree Hanging, Panel, Cable
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Hirose DF3-4S-2C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Hirose DF3-4S-2C technical specifications.
General
| Color | Black |
| Contact Gender | Female |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Depth | 6.8mm |
| Gender | Receptacle |
| Height | 4.6mm |
| Housing Color | Black |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 100V |
| Mount | Free Hanging, Panel, Cable |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DF3 |
| Termination | Crimp |
| Voltage Rating | 250V |
| Width | 4.6mm |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 22AWG |
Compliance
| RoHS | Compliant |
Datasheet
Hirose DF3-4S-2C Datasheet
Download the complete datasheet for Hirose DF3-4S-2C to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

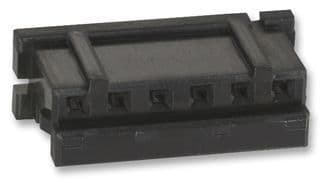

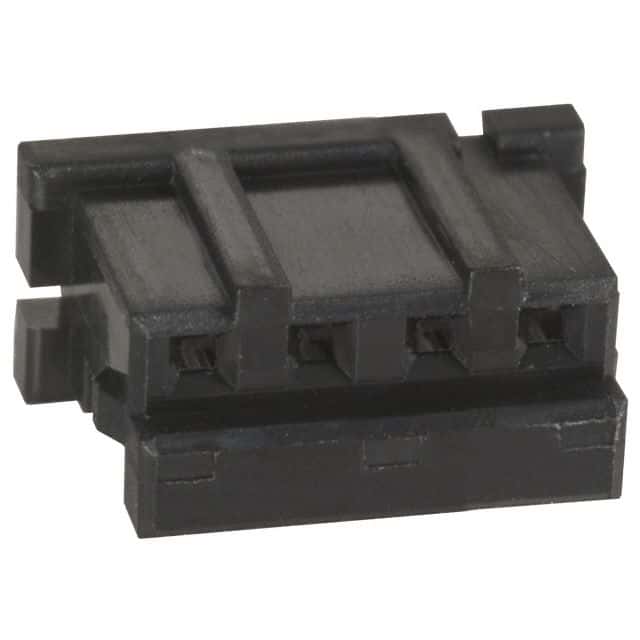

Product Images
