2-position, 1mm pitch shrouded header for board-to-board applications. Features male brass contacts with gold plating, rated for 1A and 100V AC. This right-angle, surface-mount component has a black housing and is supplied on tape and reel. Operating temperature range is -35°C to 85°C.
Voltage Rating100V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose DF50A-2P-1H(51) technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Pitch | 1mm |
| Contact Plating | Gold |
| Contact Type | Outer Shroud Contact |
| Contact Voltage Rating (AC) | 100V |
| Current Rating | 1A |
| Gender | Male |
| Height | 6.08mm |
| Lead Free | Lead Free |
| Length | 6.81mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -35°C |
| Mount | Surface Mount |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | DF50 |
| Termination | Solder |
| Voltage Rating | 100V |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Hirose DF50A-2P-1H(51) Datasheet
Download the complete datasheet for Hirose DF50A-2P-1H(51) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

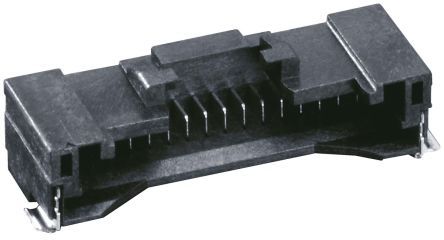

Product Images
