Right-angle, female modular connector featuring 13 positions and 11 contacts. This surface-mount device utilizes gold-plated bronze contacts and offers a 1.3mm pitch. Rated for 125V and 500mA, it supports 10,000 mating cycles and operates within a -25°C to 85°C temperature range. The connector is RoHS compliant and supplied in tape and reel packaging.
Voltage Rating125V
Current Rating500mA
MountingReverse, Surface Mount
Quick Jump:
Technical Specifications
Hirose DM2B-DSFW-PEJ-S technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Current Rating
500mA
Depth
2.2mm
Gender
Female
Height
2.2mm
Lead Free
Lead Free
Length
23.3mm
Mating Cycles
10000
Max Current Rating
500mA
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Reverse, Surface Mount
Number of Contacts
11
Number of Positions
13
Number of Rows
1
Orientation
Right Angle
Package Quantity
800
Packaging
Tape and Reel
Pitch
1.3mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DM2
Termination
SMD/SMT
Voltage Rating
125V
Width
23.3mm
Compliance
RoHS
Compliant
Datasheet
Hirose DM2B-DSFW-PEJ-S Datasheet
Download the complete datasheet for Hirose DM2B-DSFW-PEJ-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

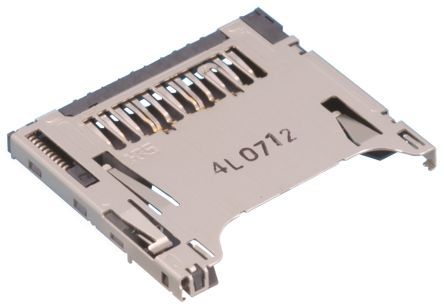

Product Images
