30-position, 1-row female right-angle card edge connector with a 0.5mm pitch. Features surface mount termination with gold-plated bronze contacts, rated for 50V AC and 500mA current. Constructed with a polyphenylene actuator and polyamide housing, offering a mating cycle of 20 and operating temperatures from -40°C to 70°C. Compliant with RoHS standards and UL94 V-0 flammability rating.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Hirose FH12-30S-0.5SH(55) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Hirose FH12-30S-0.5SH(55) technical specifications.
General
| Actuator Color | Brown |
| Actuator Material | Polyphenylene |
| Color | Beige, Brown |
| Contact Location | Bottom |
| Contact Material | Bronze |
| Contact Pitch | 500um |
| Contact Plating | Gold |
| Contact Voltage Rating (AC) | 50V |
| Current Rating | 500mA |
| Depth | 5.6mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Beige |
| Lead Free | Lead Free |
| Lead Pitch | 0.5mm |
| Length | 19.1mm |
| Material | Polyamide |
| Mating Cycles | 20 |
| Max Current Rating | 400mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Mount | Surface Mount |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FH12 |
| Termination | Solder |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| Width | 19.1mm |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Hirose FH12-30S-0.5SH(55) Datasheet
Download the complete datasheet for Hirose FH12-30S-0.5SH(55) to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

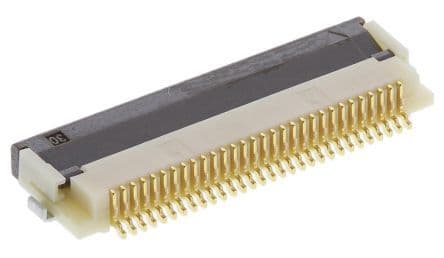

Product Images
