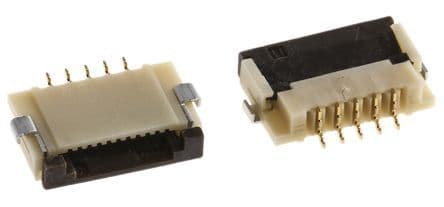

Right-angle, 5-position FFC connector featuring a 1mm pitch and bottom contact location. This surface-mount female connector utilizes gold-plated bronze contacts and a polyphenylene actuator, rated for 500mA current and 50V AC/DC. Operating within a -40°C to 85°C temperature range, it offers 20 mating cycles and is supplied on tape and reel.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose FH12-5S-1SH(55) technical specifications.
General
Actuator Color
Brown
Actuator Material
Polyphenylene
Contact Location
Bottom
Contact Material
Bronze
Contact Plating
Gold
Current Rating
500mA
Depth
5.6mm
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Beige
Lead Free
Lead Free
Length
9.6mm
Mating Cycles
20
Max Current Rating
400mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
50V
Mount
Surface Mount
Number of Contacts
5
Number of Positions
5
Number of Rows
1
Orientation
Right Angle
Package Quantity
2000
Packaging
Tape and Reel
Pitch
1mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
FH12
Termination
Solder
Voltage Rating
50V
Wire/Cable Type
Straight
Compliance
RoHS
Compliant
Datasheet
Hirose FH12-5S-1SH(55) Datasheet
Download the complete datasheet for Hirose FH12-5S-1SH(55) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
