45-position, 0.3mm pitch right-angle FPC connector with gold-plated bronze contacts. Features a durable Nylon/Polyamide actuator and a beige housing, rated for 30V and 200mA. Designed for surface mount termination with a UL94 V-0 flammability rating and a wide operating temperature range of -55°C to 85°C. This RoHS compliant receptacle offers 10 mating cycles and is supplied in tape and reel packaging.
Voltage Rating30V
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose FH39-45S-0.3SHW(10) technical specifications.
General
| Actuator Color | Black |
| Actuator Material | Nylon, Polyamide |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 200mA |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Beige |
| Lead Free | Lead Free |
| Mating Cycles | 10 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 45 |
| Number of Positions | 45 |
| Number of Rows | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Pitch | 0.3mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FH39 |
| Termination | SMD/SMT |
| Voltage Rating | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Hirose FH39-45S-0.3SHW(10) Datasheet
Download the complete datasheet for Hirose FH39-45S-0.3SHW(10) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

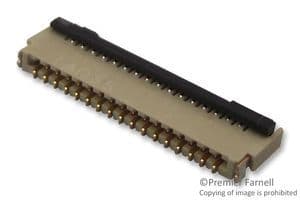

Product Images
