100-position, 2-row board-to-board receptacle with a 0.6mm pitch. Features gold-plated bronze contacts, a 400mA current rating, and a 100V AC voltage rating. This surface mount component offers a mated stacking height of 4mm and is housed in brown, UL94 V-0 rated material. Lead-free and RoHS compliant.
Current Rating400mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Hirose FX8-100S-SV technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Current Rating
400mA
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Brown
Lead Free
Lead Free
Mated Stacking Heights
4mm
Mount
Surface Mount
Number of Contacts
100
Number of Positions
100
Number of Rows
2
Package Quantity
1
Packaging
Tray
Pitch
0.6mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
FunctionMax™ FX8
Termination
SMD/SMT
Voltage Rating (AC)
100V
Compliance
RoHS
Compliant
Datasheet
Hirose FX8-100S-SV Datasheet
Download the complete datasheet for Hirose FX8-100S-SV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

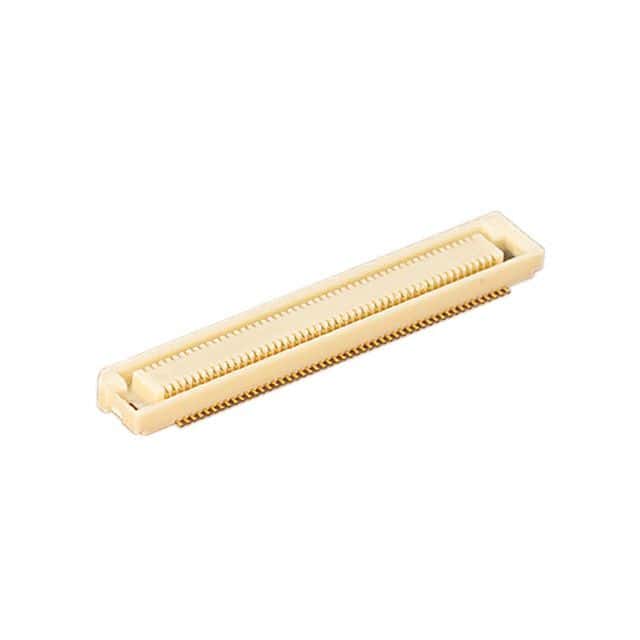

Product Images
