50-position, 2-row shrouded header receptacle with a 2.54mm pitch. Features gold-plated copper alloy female socket contacts with a square shape, rated for 1A current and 200V voltage. Straight, through-hole mounting with a 9.5mm height and 68.07mm length. Insulation is black PBT with a UL94 V-0 flammability rating. Mated stacking height is 12.2mm.
Voltage Rating200V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Hirose HIF3FB-50DA-2.54DSA(71) technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Current Rating
1A
Flammability Rating
UL94 V-0
Height
9.5mm
Insulation Color
Black
Insulation Material
PBT
Length
68.07mm
Mated Stacking Heights
12.2mm
Mount
Through Hole
Number of Contacts
50
Number of Positions
50
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Tray
Pitch
2.54mm
RoHS Compliant
Yes
Series
HIF3FB
Termination
Solder
Voltage Rating
200V
Voltage Rating (AC)
200V
Compliance
RoHS
Compliant
Datasheet
Hirose HIF3FB-50DA-2.54DSA(71) Datasheet
Download the complete datasheet for Hirose HIF3FB-50DA-2.54DSA(71) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

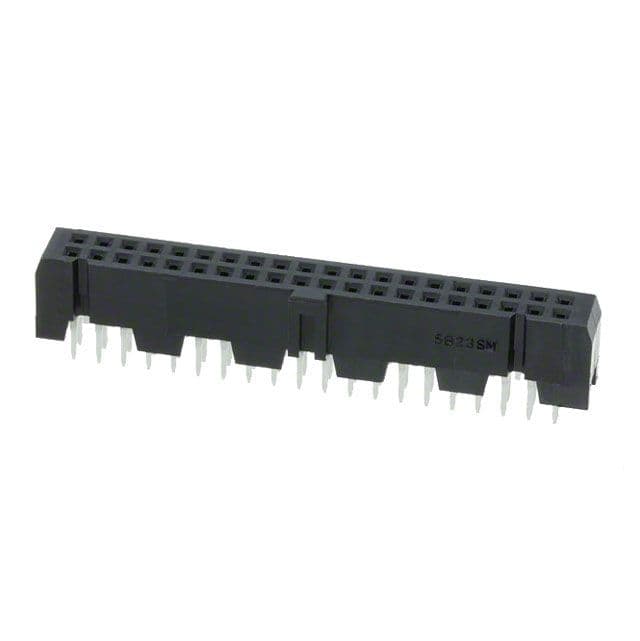

Product Images
