6-position straight circular connector with solder termination and a panel mount bulkhead design. Features a zinc alloy shell with nickel plating and a blue plastic insulation material. Offers a 2A current rating and 100V AC/DC voltage rating, with a maximum operating temperature of 85°C. Contact gender is female, with bronze contact material and gold/silver plating for mating. This RoHS compliant, lead-free component is supplied in tray packaging.
Voltage Rating100V
Current Rating2A
MountingThrough Hole, Panel, Bulkhead, Rear Side Nut
Quick Jump:
Technical Specifications
Hirose HR10A-7R-6SB(73) technical specifications.
General
| Color | Blue |
| Contact Finish - Mating | SILVER |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold, Silver |
| Current Rating | 2A |
| Flammability Rating | UL94 V-0 |
| Insulation Material | Plastic |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, Panel, Bulkhead, Rear Side Nut |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Plating | Nickel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | HR10 |
| Shell Finish | Nickel |
| Shell Material | ZINC ALLOY |
| Shell Size | 7 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 100V |
| DC Rated Voltage | 140V |
Compliance
| RoHS | Compliant |
Datasheet
Hirose HR10A-7R-6SB(73) Datasheet
Download the complete datasheet for Hirose HR10A-7R-6SB(73) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

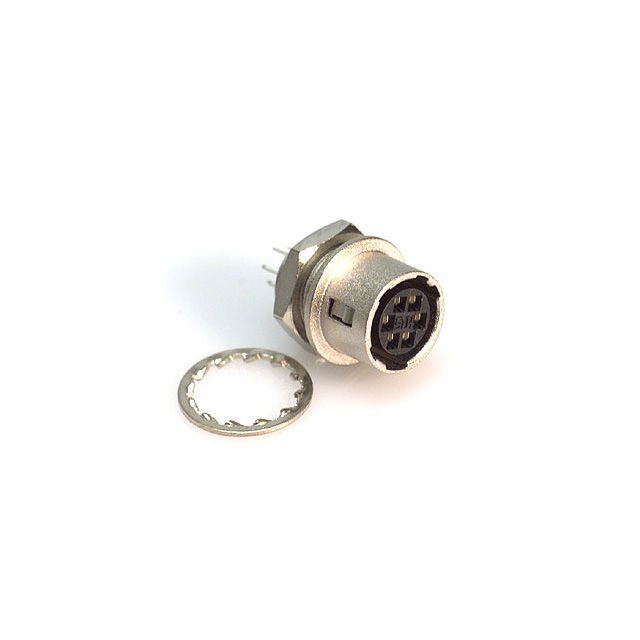

Product Images
