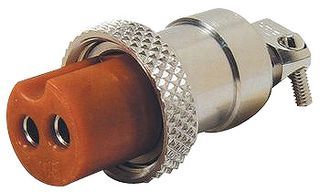

The HS21P-2(71) is a 2-position, 10A, 350V circular connector from Hirose. It features a brass body with bronze and brass contacts, nickel plating, and solder termination. This connector is designed for free-hanging or cable mounting and operates within a temperature range of -25°C to 85°C. The HS21P-2(71) is compliant with RoHS regulations but does not meet radiation hardening or SVHC compliance requirements.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hirose HS21P-2(71) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Hirose HS21P-2(71) technical specifications.
| Body Material | Brass |
| Contact Gender | Female |
| Contact Material | Bronze, Brass |
| Contact Plating | Nickel |
| Current Rating | 10A |
| Gender | Male |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HS |
| Termination | Solder |
| Voltage Rating | 350V |
| RoHS | Compliant |
Download the complete datasheet for Hirose HS21P-2(71) to view detailed technical specifications.
