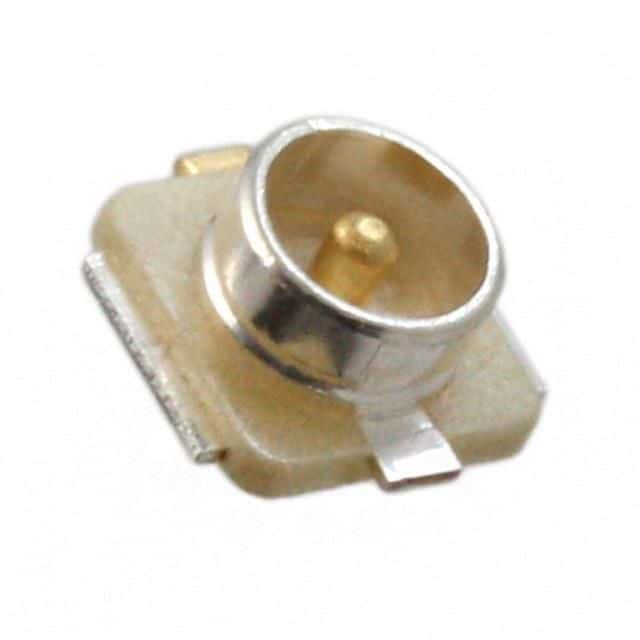

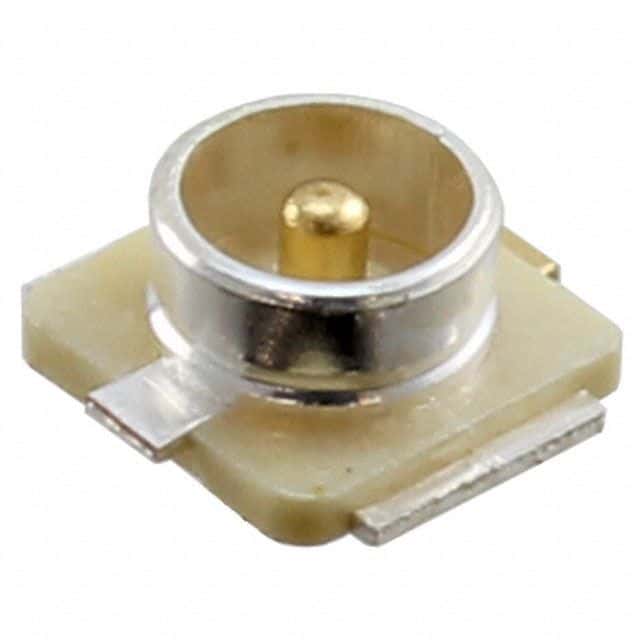

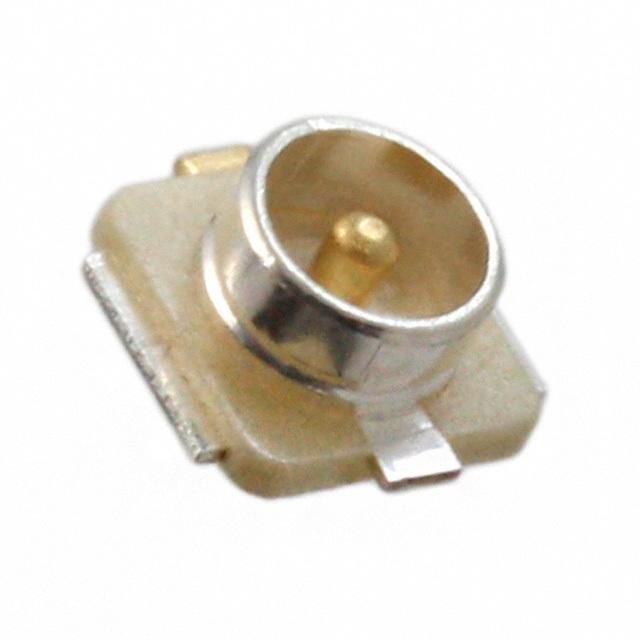

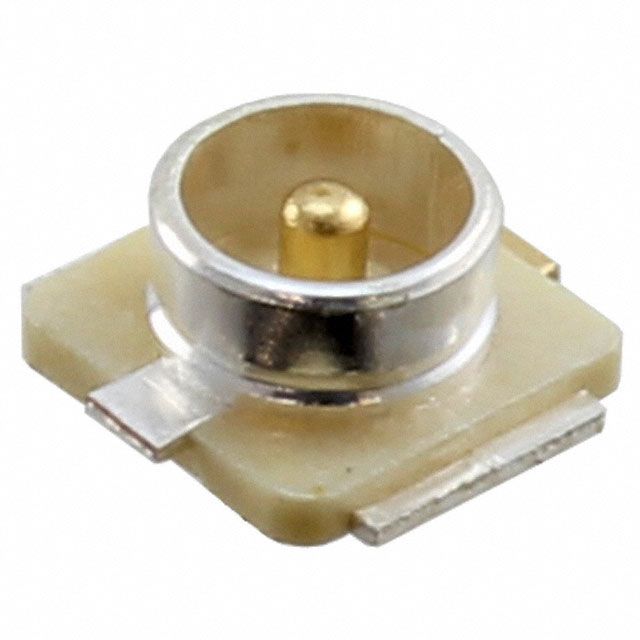

RF connector, a straight, male, board mount receptacle featuring a surface mount terminal. This single-contact component offers 50 Ohm impedance and supports a maximum frequency of 6GHz. Constructed with a bronze body plated in silver and brass contacts plated in gold, it utilizes a polymer dielectric. Rated for 60V and 30 mating cycles, it operates within a temperature range of -40°C to 90°C. Packaged on tape and reel, this RoHS compliant component is designed for solder termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hirose U.FL-R-SMT-1(10) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Bronze |
| Body Plating | Silver |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Dielectric Material | Polymer |
| Housing Color | Beige |
| Impedance | 50R |
| Mating Cycles | 30 |
| Max Frequency | 6GHz |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | U.FL |
| Termination | Solder |
| Voltage Rating | 60V |
| Weight | 0.001764oz |
| RoHS | Compliant |
