5-position, 1.2mm pitch male interconnection device with straight orientation. Features copper alloy contacts with gold plating, rated for 1A current and 5V voltage. Designed for cable mounting with a solder termination, offering 5000 mating cycles. Operates within a -30°C to 75°C temperature range and boasts a UL94 V-0 flammability rating. RoHS compliant and lead-free.
Voltage Rating5V
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Hirose UX40A-MB-5P technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Lead Free | Lead Free |
| Mating Cycles | 5000 |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -30°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Number of Positions | 5 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 1.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | UX |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 5V |
Compliance
| RoHS | Compliant |
Datasheet
Hirose UX40A-MB-5P Datasheet
Download the complete datasheet for Hirose UX40A-MB-5P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

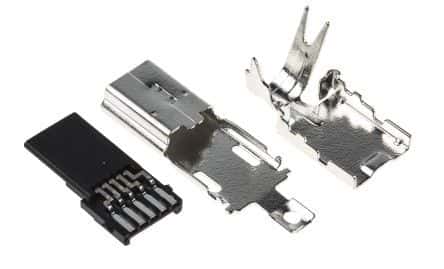

Product Images
