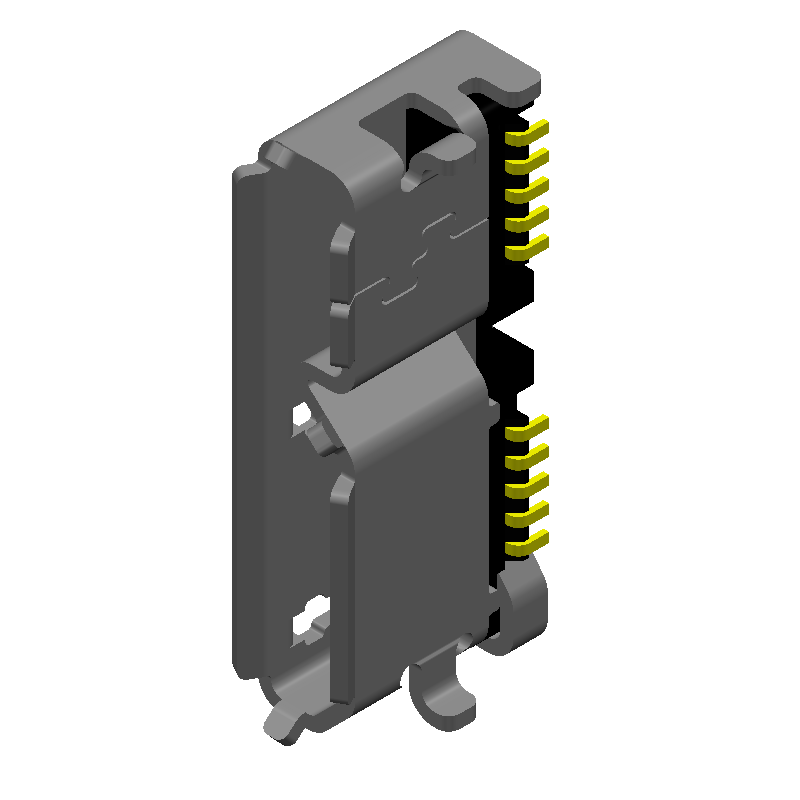

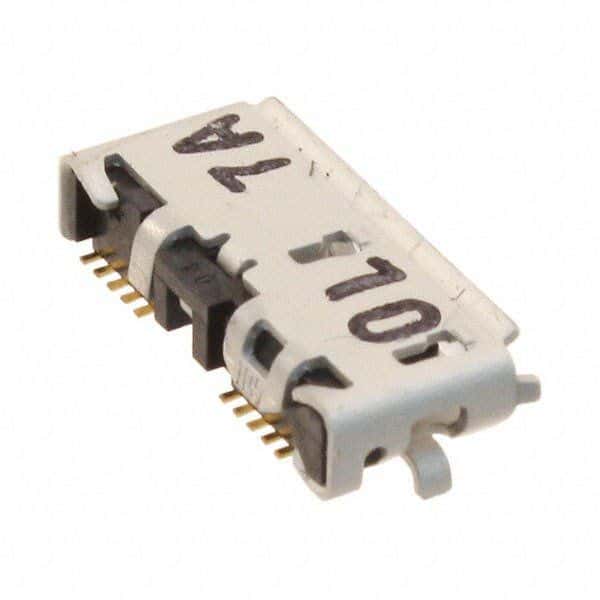

10 Pos Receptacle, Right Angle, 5Gbps, 1A, 30V, SMT Connector

Hirose

ZX360D-B-10P

Name: ZX360D-B-10P Hirose
Brand: Hirose
SKU: ZX360D-B-10P

10 Pos Receptacle, Right Angle, 5Gbps, 1A, 30V, SMT Connector

10-position, 1-port, right-angle receptacle connector for telecom and datacom applications. Features gold-plated stainless steel, copper, and copper alloy contacts with a 650µm pitch, rated for 30V AC and 1A current. Supports data rates up to 5Gbps, compliant with USB 3.0 standards, and offers 10,000 mating cycles. This surface mount terminal connector has a 2.63mm height, 12.85mm length, and 5mm width, with a black insulation color and UL94 V-0 flammability rating.

Voltage Rating30V

Current Rating1A

MountingSurface Mount, Through Hole, Horizontal

Quick Jump:

Technical Specifications

Hirose ZX360D-B-10P technical specifications.

General

Contact Material	Stainless Steel, Copper, Copper Alloy
Contact Pitch	650um
Contact Plating	Gold
Contact Voltage Rating (AC)	30V
Current Rating	1A
Data Rate	5Gbps
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	2.63mm
Insulation Color	Black
Length	12.85mm
Mating Cycles	10000
Max Operating Temperature	85°C
Min Operating Temperature	-30°C
Mount	Surface Mount, Through Hole, Horizontal
Number of Contacts	10
Number of Ports	1
Number of Positions	10
Number of Rows	1
Orientation	Right Angle
Package Quantity	3000
Packaging	Tape and Reel
Pitch	650um
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	ZX360
Termination	Solder
USB Standard	USB 3.0
Voltage Rating	30V
Width	5mm
