Shielded, right-angle, surface-mount receptacle with 5 contacts, designed for telecom and datacom applications. Features gold-plated copper alloy contacts, a 1.8A current rating, and 30V voltage rating. This connector offers 10,000 mating cycles and is UL94 V-0 flammability rated, with a black insulation color and black housing. Compliant with RoHS standards, it utilizes a latching mechanism for secure mating.
Voltage Rating30V
Current Rating1.8A
MountingSurface Mount, Horizontal
Quick Jump:
Technical Specifications
Hirose ZX62WD1-B-5PC technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1.8A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Insulation Color | Black |
| Lead Free | Lead Free |
| Mating Cycles | 10000 |
| Mount | Surface Mount, Horizontal |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ZX |
| Shielding | Shielded |
| Termination | Solder |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Hirose ZX62WD1-B-5PC Datasheet
Download the complete datasheet for Hirose ZX62WD1-B-5PC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

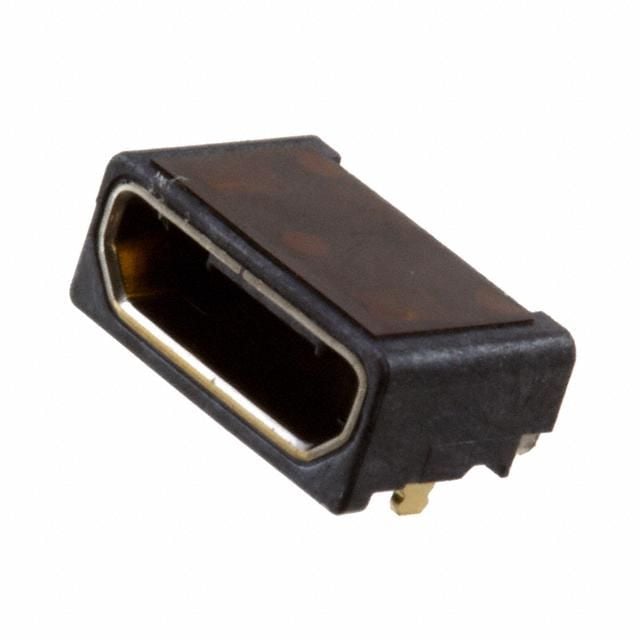

Product Images
