Rectangular Hall Effect Sensor, Surface Mount, SOT-23 package. Operates from 3V to 24V DC supply voltage with a maximum supply current of 8mA and nominal supply current of 3.5mA. Features a maximum output current of 20mA and a minimum output voltage of 400mV. With an operating temperature range of -40°C to 150°C and a leakage current of 10µA, this RoHS compliant integrated circuit is supplied in tape and reel packaging.
PackageSOT-23
Current3.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell SS343RT technical specifications.
General
Package/Case
SOT-23
Height
0.047inch
Leakage Current
10uA
Length
0.114inch
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Min Output Voltage
400mV
Max Supply Current
8mA
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
3V
Max Supply Voltage
24V
Min Supply Voltage
3V
Mount
Surface Mount
Nominal Supply Current
3.5mA
Output Current
20mA
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SS340RT
Supply Current
3.5mA
Termination
SMD/SMT
Type
Integrated Circuit (IC)
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Honeywell SS343RT Datasheet
Download the complete datasheet for Honeywell SS343RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

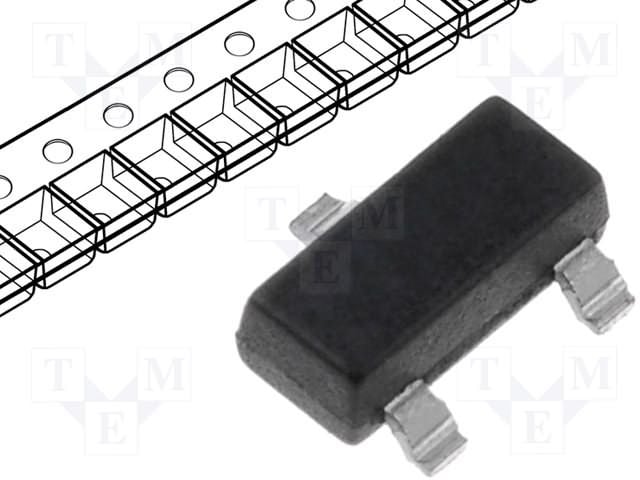

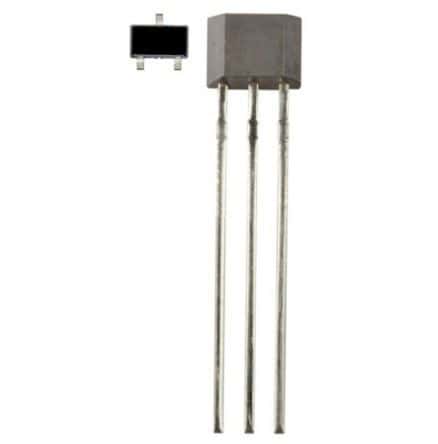

Product Images
