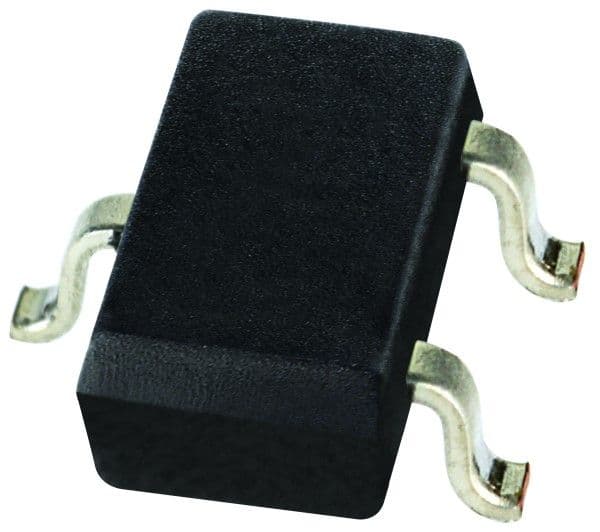

The SS349RT is a surface mount encoded IC from Honeywell, packaged in a SOT-23 case with a height of 1.2mm and a width of 1.6mm. It operates over a temperature range of -40°C to 150°C and has a nominal supply current of 3.5mA. The device has a maximum output current of 20mA and a minimum output voltage of 400mV. It is RoHS compliant and available on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell SS349RT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-23 |
| Height | 1.2mm |
| Leakage Current | 10uA |
| Length | 2.9mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Min Output Voltage | 400mV |
| Max Supply Current | 8mA |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 3.5mA |
| Operating Supply Current | 3.5mA |
| Output Current | 20mA |

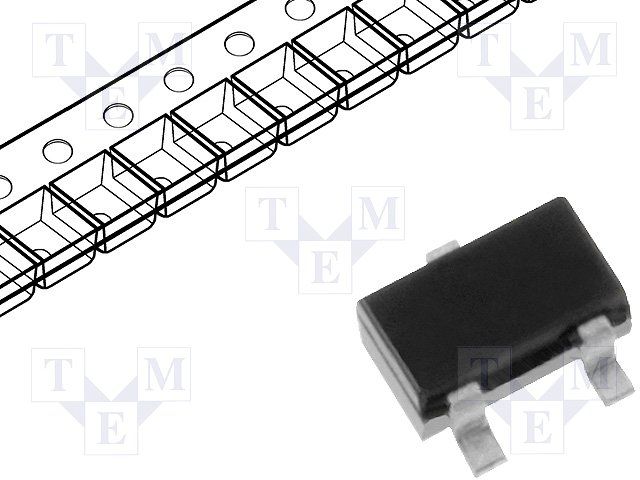

| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SS340RT |
| Type | Integrated Circuit (IC) |
| Width | 1.6mm |
| RoHS | Compliant |
