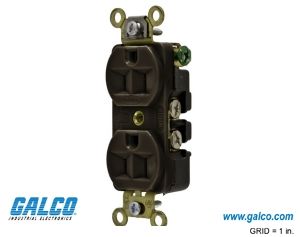

2-gang, 2-pole, 3-contact AC power receptacle featuring a 15A current rating and 125V voltage rating. Constructed with a durable Nylon and PET body, it utilizes bronze socket contacts and screw termination. This receptacle is UL and CSA approved, with a UL94 V-0 flammability rating and a maximum operating temperature of 75°C. Designed for flush or panel mounting, it offers a straight orientation and a brown color finish.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hubbell HBL5252 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Body Material | PET, Polyethylene |
| Package/Case | 125 |
| Color | Brown |
| Contact Material | Bronze |
| Contact Type | Socket |
| Current Rating | 15A |
| Flammability Rating | UL94 V-0 |
| Material | Nylon |
| Max Current Rating | 15A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Mount | Flush, Panel |
| Number of Contacts | 3 |
| Number of Gangs | 2 |
| Number of Poles | 2 |
| Orientation | Straight |
| Overall Depth | 20.3mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Termination | Screw |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| RoHS | Not Compliant |
