15A, 250V male straight plug for cable mounting. Features 3 contacts and 2 poles with brass/copper alloy pin contacts. Constructed with a black nylon/polyamide body, rated UL94 HB for flammability and IP20 for protection. Operates between -40°C and 75°C, with screw termination. Approvals include UL and CSA.
Voltage Rating250V
Current Rating15A
MountingCable
Quick Jump:
Technical Specifications
Hubbell HBL5666C technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Nylon, Polyamide |
| Color | Black |
| Contact Material | Brass, Copper Alloy |
| Contact Plating | Brass |
| Contact Type | Pin |
| Current Rating | 15A |
| Flammability Rating | UL94 HB |
| Gender | Male |
| Max Current Rating | 15A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 3 |
| Number of Poles | 2 |
| Orientation | Straight |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Termination | Screw |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Weight | 113g |
Compliance
| RoHS | Not Compliant |
Datasheet
Hubbell HBL5666C Datasheet
Download the complete datasheet for Hubbell HBL5666C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

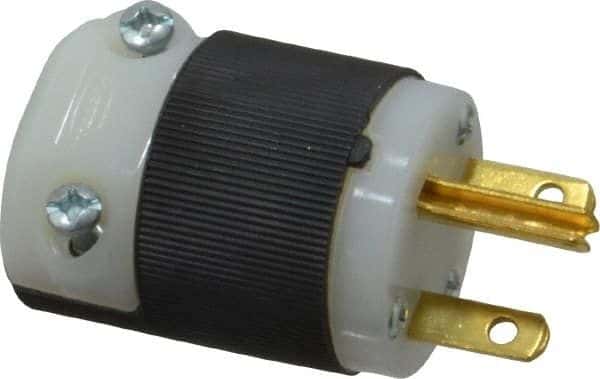

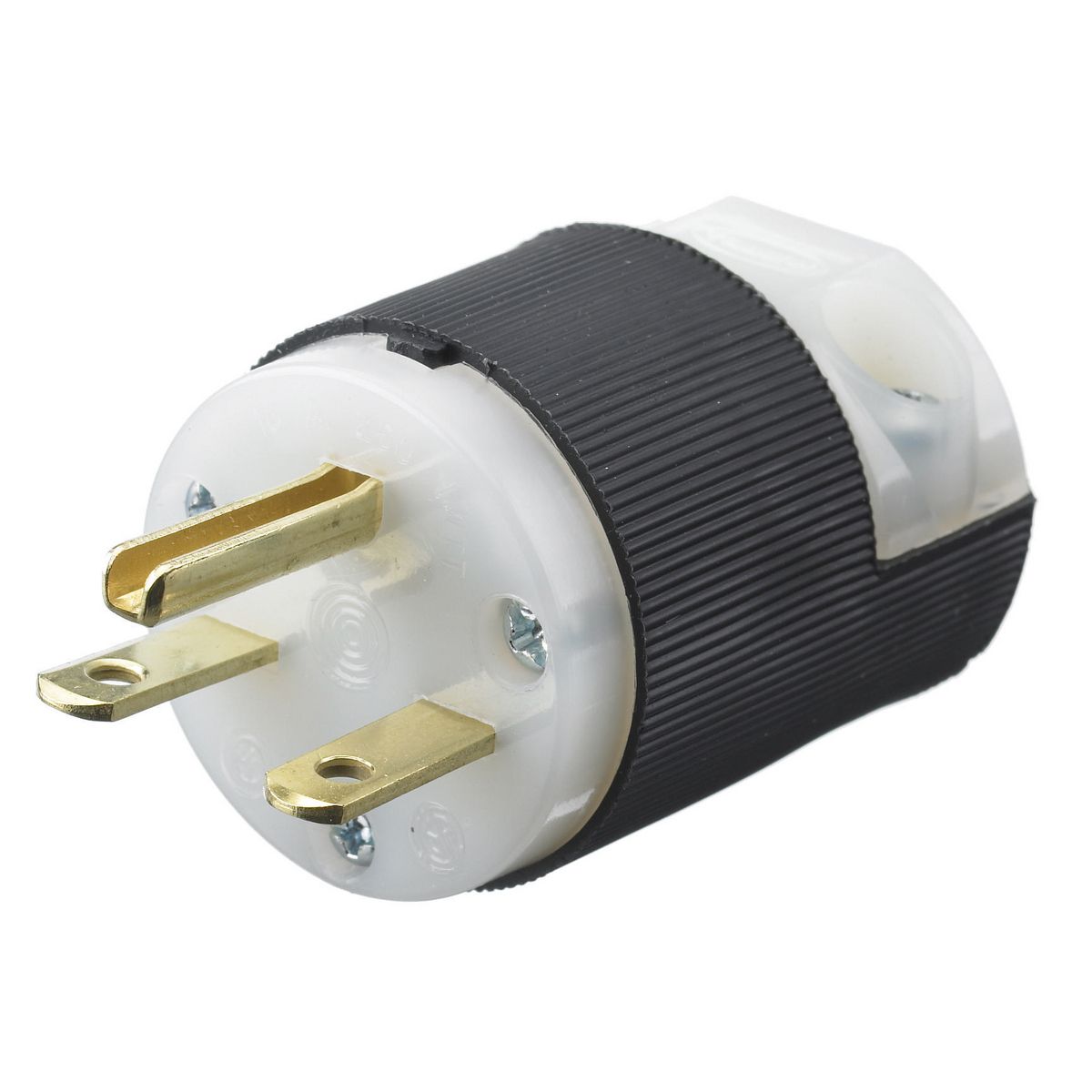

Product Images
