The BNDH15W is a 2-position FFC/FPC connector with a maximum current rating of 10A and a voltage rating of 600V. It features a straight orientation and a pitch of 43mm. The connector is RoHS compliant and has a termination type of screw. It is designed for use with flexible flat cable or flexible printed circuit applications.
Package600
Voltage600V
Current10A
Voltage Rating600V
Quick Jump:
Technical Specifications
Idec BNDH15W technical specifications.
General
| Package/Case | 600 |
| Color | Black |
| Current | 10A |
| Current Rating | 10A |
| Insulation Material | PPE |
| Max Current Rating | 10A |
| Number of Circuits | 2 |
| Number of Contacts | 4 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Orientation | Straight |
| Pitch | 43mm |
| RoHS Compliant | Yes |
| Series | BN |
| Terminal Width | 8mm |
| Termination | Screw |
| Voltage | 600V |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Gauge | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
Idec BNDH15W Datasheet
Download the complete datasheet for Idec BNDH15W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

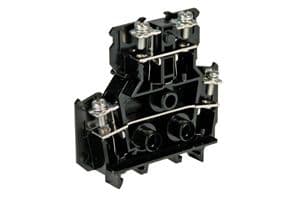

Product Images
