PackageTSSOP
Current5uA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
IDT 74FCT162245CTPAG8 technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Direction | Bidirectional |
| High Level Output Current | 24mA |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Moisture Sensitivity Level | 1 |
| Mount | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Channels | 16 |
| Number of Elements | 2 |
| Operating Supply Voltage | 5V |
| Output Type | PUSH-PULL, 3-STATE |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 3.5ns |
| Quiescent Current | 500uA |
| RoHS Compliant | Yes |
| Series | 74FCT |
| Supply Current | 5uA |
| Technology | CMOS |
| Thickness | 1mm |
| Turn-On Delay Time | 4.8ns |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
IDT 74FCT162245CTPAG8 Datasheet
Download the complete datasheet for IDT 74FCT162245CTPAG8 to view detailed technical specifications.
No datasheet is available for this part.

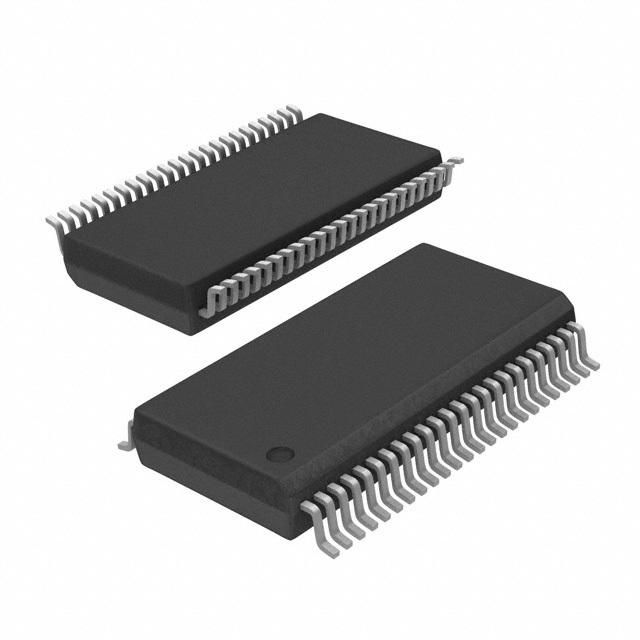

Product Images
