Frequency800MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
IDT 8543BGLFT technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Input | CML |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Frequency | 800MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mode of Operation | DIFFERENTIAL |
| Moisture Sensitivity Level | 1 |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Thickness | 1mm |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
IDT 8543BGLFT Datasheet
Download the complete datasheet for IDT 8543BGLFT to view detailed technical specifications.
No datasheet is available for this part.

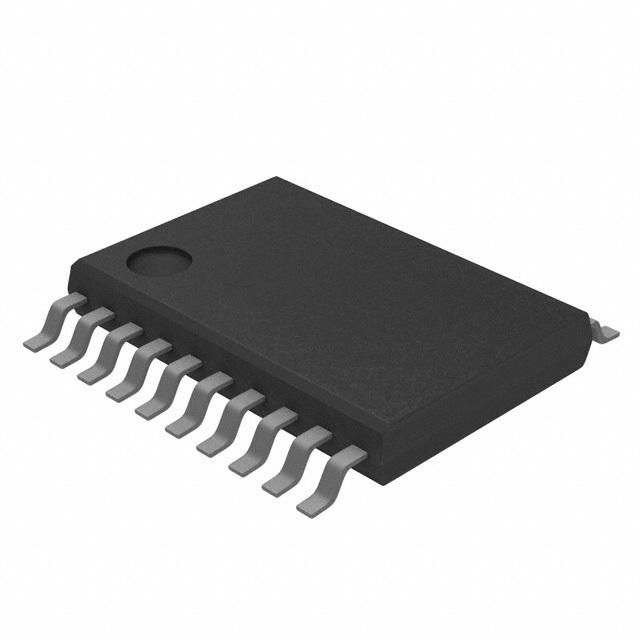

Product Images
