The IDT 9DB803DGILFT is a 3.3V 8-output HCSL clock buffer available in a TSSOP-14 package. It operates over a temperature range of -40°C to 85°C and is RoHS compliant. The device has a maximum supply voltage of 3.465V and a minimum supply voltage of 3.135V. It is designed for surface mount applications and has a moisture sensitivity level of 1.
Frequency400MHz
PackageTSSOP
Current190mA
MountingSurface Mount
Quick Jump:
Technical Specifications
IDT 9DB803DGILFT technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Input | HCSL |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Max Frequency | 400MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Moisture Sensitivity Level | 1 |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| PLL | Yes |
| RoHS Compliant | Yes |
| Supply Current | 190mA |
| Thickness | 1mm |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
IDT 9DB803DGILFT Datasheet
Download the complete datasheet for IDT 9DB803DGILFT to view detailed technical specifications.
No datasheet is available for this part.

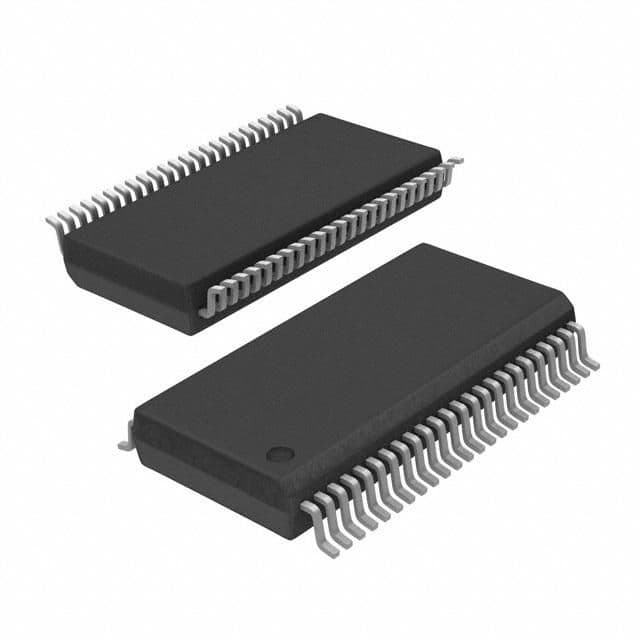

Product Images
