The BAR6402ELE6327XTMA1 is a surface mount PIN diode with a maximum current rating of 100mA and maximum power dissipation of 250mW. It is packaged in a 0402 case and features tin, matte contact plating. The diode operates over a temperature range of -55°C to 125°C and is RoHS compliant.
Package0402
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BAR6402ELE6327XTMA1 technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1006 |
| Package/Case | 0402 |
| Contact Plating | Tin, Matte |
| Diode Type | PIN - Single |
| Max Current Rating | 100mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BAR6402ELE6327XTMA1 Datasheet
Download the complete datasheet for Infineon BAR6402ELE6327XTMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

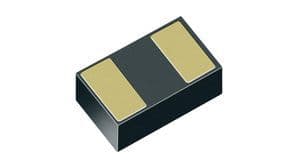

Product Images
