PackageTO-236-3
Capacitance2pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BAS7005E6327 technical specifications.
General
Average Rectified Current
70mA
Capacitance
2pF
Package/Case
TO-236-3
Contact Plating
Tin, Matte
Forward Current
70mA
Height
0.9mm
Lead Free
Contains Lead
Length
2.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
70V
Max Reverse Current
100nA
Max Reverse Voltage (DC)
70V
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
100mA
Radiation Hardening
No
Reverse Recovery Time
100ps
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Infineon BAS7005E6327 Datasheet
Download the complete datasheet for Infineon BAS7005E6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

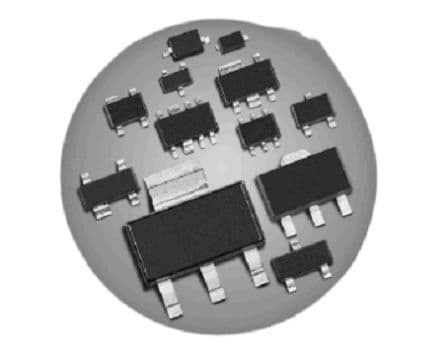

Product Images
