Technical Specifications
Infineon BAT64-06W technical specifications.
General
Package/Case
SOT
Element Configuration
Dual
Forward Current
250mA
Halogen Free
Halogen Free
Height
0.8mm
Length
2mm
Max Forward Surge Current (Ifsm)
800mA
Max Operating Temperature
150°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
200uA
Packaging
Tape and Reel
Reverse Recovery Time
5ns
RoHS Compliant
Yes
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Infineon BAT64-06W Datasheet
Download the complete datasheet for Infineon BAT64-06W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

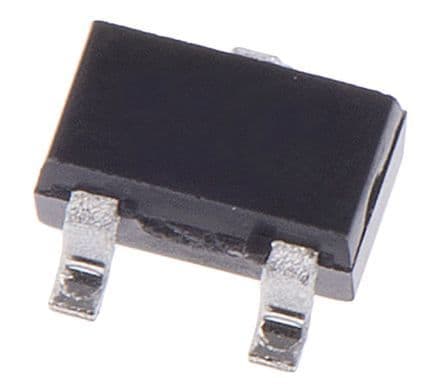

Product Images
