Technical Specifications
Infineon BAT6404E6433HTMA1 technical specifications.
General
| Average Rectified Current | 120mA |
| Capacitance | 4pF |
| Package/Case | TO-236-3 |
| Contact Plating | Tin, Matte |
| Current Rating | 250mA |
| Forward Current | 250mA |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 800mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 2uA |
| Max Reverse Voltage (DC) | 40V |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Reverse Recovery Time | 5ns |
| Reverse Voltage | 40V |
| RoHS Compliant | No |
| DC Rated Voltage | 40V |
Compliance
| RoHS | Not Compliant |
Datasheet
Infineon BAT6404E6433HTMA1 Datasheet
Download the complete datasheet for Infineon BAT6404E6433HTMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

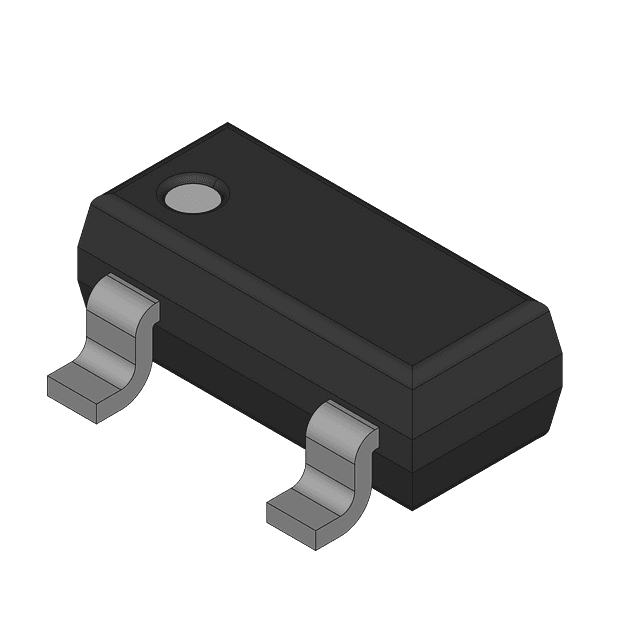

Product Images
