PackageTO-236-3
Current Rating-500mA
MountingSurface Mount
PolarityPNP
Quick Jump:
Technical Specifications
Infineon BC80725E6327 technical specifications.
General
Package/Case
TO-236-3
Collector Base Voltage (VCBO)
50V
Collector Emitter Breakdown Voltage
45V
Collector-emitter Voltage-Max
700mV
Current Rating
-500mA
Emitter Base Voltage (VEBO)
5V
Gain Bandwidth Product
200MHz
hFE Min
160
Lead Free
Lead Free
Max Breakdown Voltage
45V
Max Collector Current
500mA
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
330mW
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Polarity
PNP
Transition Frequency
200MHz
DC Rated Voltage
-45V
Compliance
RoHS
Compliant
Datasheet
Infineon BC80725E6327 Datasheet
Download the complete datasheet for Infineon BC80725E6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

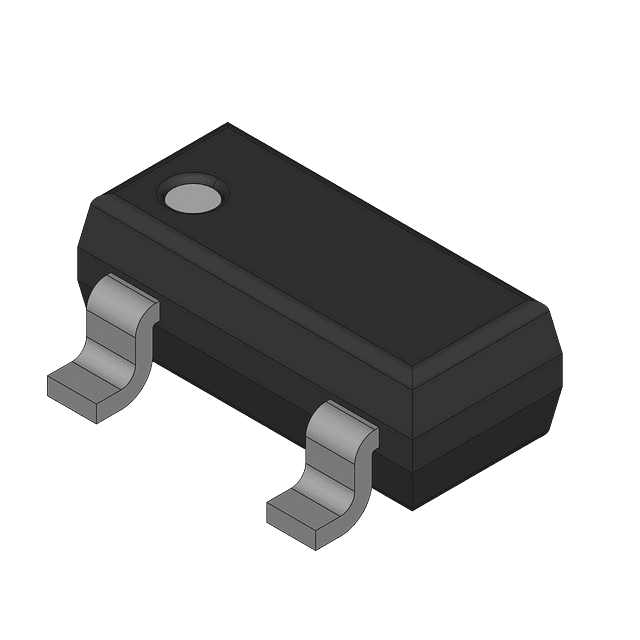

Product Images
